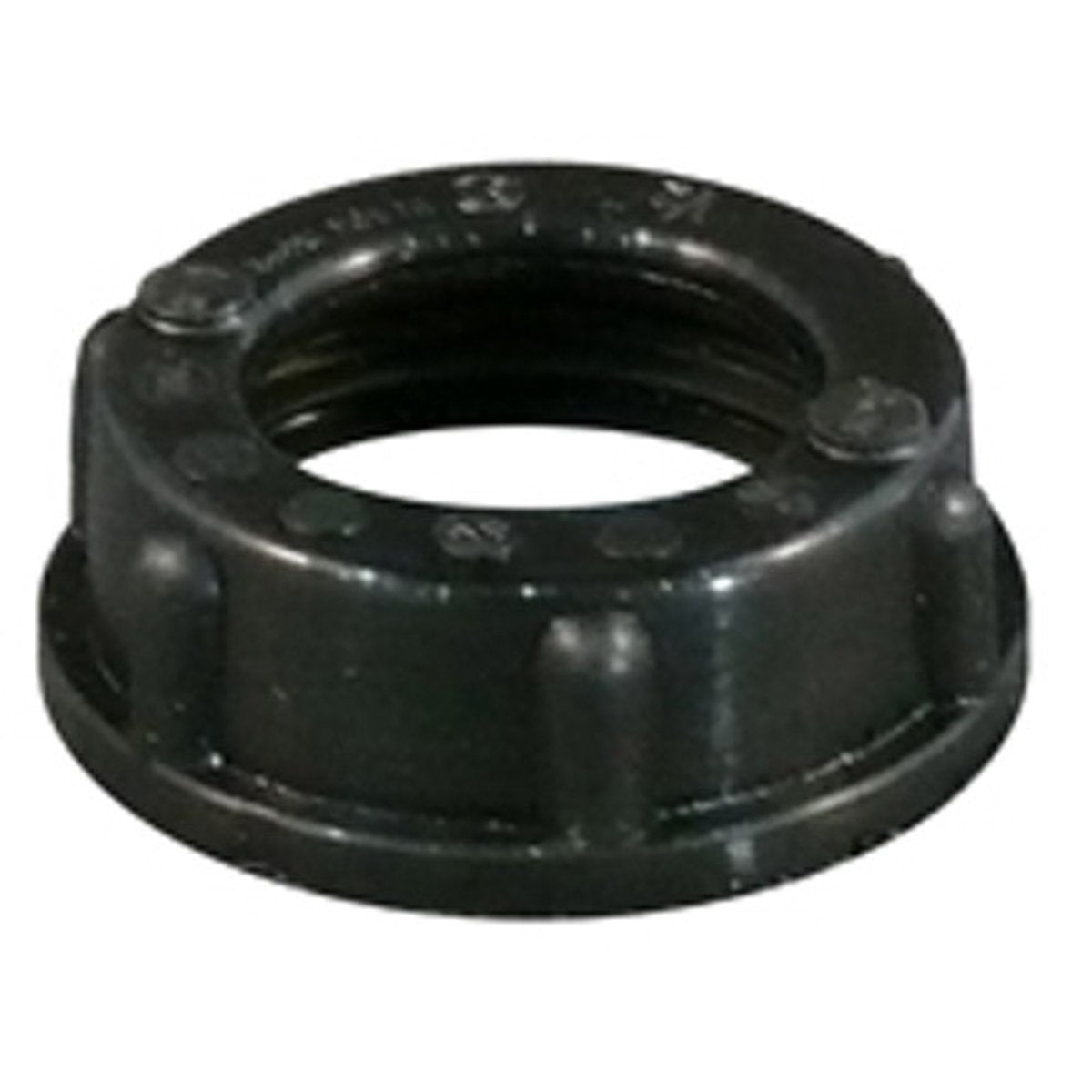

The APPLETON BBU75H is a conduit bushing with a 3/4 inch trade size. Constructed from thermoplastic, it features a threaded connection and a temperature rating of 150 DEG C. It is designed for use with locknuts to terminate rigid metal conduit or IMC to a box or enclosure.
Provides a smooth pulling surface
Prevents the entry of dirt or dust
Impact-resistant material
Product Highlights
The APPLETON BBU75H conduit bushing is UL listed and CSA certified. It is made in the USA.
Product Information
Standard Information
Brand: APPLETON
Manufacturer Part Number: BBU75H
Country of Origin: United States
Technical Specifications
Catalog Number
BBU75H
Manufacturer
Appleton Electric
Brand
Appleton
Country of Origin
United States
Made in USA
Yes
Application
For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure
Connection
Threaded
Material
Thermoplastic
Special Features
Provides a smooth pulling surface; Non-grounding; Self-extinguishing material
Standard
UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
RoHS Indicator
Contact Manufacturer
UPC
781381321372
GTIN
00781381321372
Item Type
Conduit Bushing
Length
6.5000 Inch
Width
4.7000 Inch
Height
0.0310 Inch
Weight
0.010 Pounds
Size
3/4
Temperature Rating
302 °F
Trade Size
3/4 in
Type
Non-Grounding
Dimensions
1.31 in Dia x 0.41 in H
ARRA Compliant
Y
Buy American Compliant
N
EU RoHS Indicator
C
Gross Weight Per Pack
0.0100 lb
Gross Weight per Pack Metric
0.00
Gross Weight UOM Metric
kg
Height [Metric]
0.7874 mm
Length [Metric]
16.5100 cm
Standards
ARRA CompliantRoHS CompliantCSA 065178 C22.2 No. 18.3NEMA FB-1UL 514B E14814
