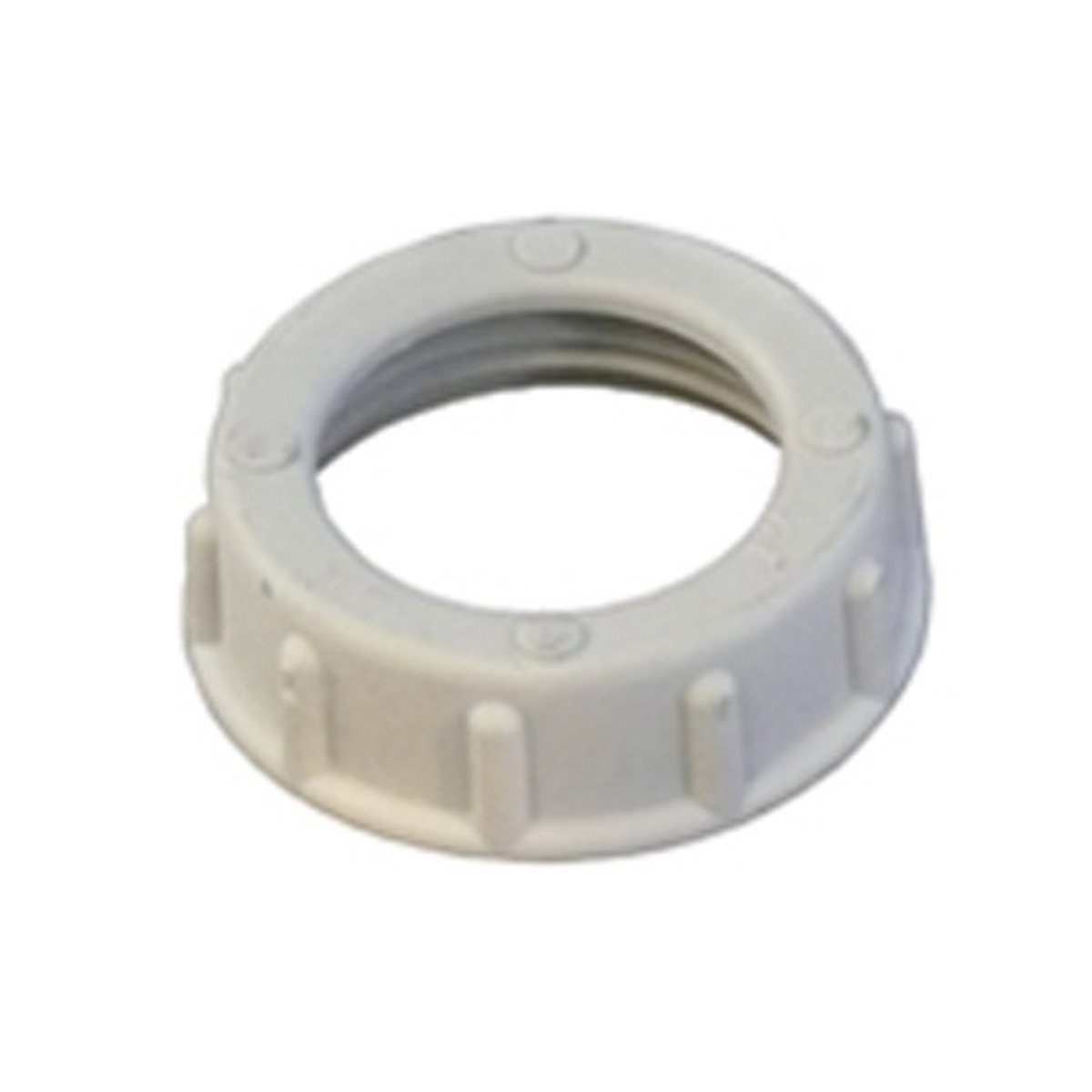

Appleton BBU-350 Conduit Bushing 3-1/2 Inch

Product Description

The APPLETON BBU-350 is a conduit bushing designed for terminating rigid metal conduit or IMC to a box or enclosure. It provides a smooth pulling surface for wires. Constructed from impact-resistant plastic with a threaded connection, it ensures secure conduit termination in industrial and commercial electrical installations.

• 3-1/2 inch trade size
• Threaded female connection
• Impact-resistant plastic construction

Product Highlights

The Appleton BBU-350 conduit bushing is UL 514B and CSA C22.2 certified and has a 105°C temperature rating.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BBU-350
• Country of Origin: United States

Technical Specifications

• Catalog Number: BBU-350
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: United States
• Made in USA: Yes
• Application: Rigid metal conduit and IMC
• Connection: Threaded
• Material: Plastic
• Special Features: Provides a smooth pulling surface; Non-grounding; Impact-resistant material
• Standard: UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• UPC: 781381156103
• GTIN: 00781381156103
• Item Type: Conduit Bushing
• Length: 9.0000 Inch
• Width: 6.0000 Inch
• Height: 0.7000 Inch
• Weight: 0.130 Pounds
• Size: 3-1/2
• Temperature Rating: 105 °C
• Item dimensions L x W x H: 5 x 5 x 9 inches
• Unit Count: 1 Count
• Product Series: Conduit Bushing
• Family Series: Appleton Bushings, Conduit Bushing Series
• Description: Conduit Bushing, Size: 3-1/2 IN, Material: Plastic, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 3/4 IN Height X 4.34 IN Diameter, Standard: UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, For Use With Locknut To Terminate
• Grounding: No
• Hazardous Location: No
• Insulation Material: Plastic
• Mounting: Threaded
• Composition: Plastic
• Trade Size: 3.5 "
• Conduit Fitting: RMC (Rigid Metallic Conduit), IMC (Intermediate Metallic Conduit)
• Approvals: CSA, UL
• Comments: Listed for Ordinary Locations
• Net Weight: 0 lbs
• Gross Weight: 0.13 lbs
• MPN: BBU-350
• Connection Type: Threaded female
• Diameter: 4.34 inches
• Certifications: UL 514B, CSA C22.2
• Non-grounding type: None
• UNSPSC: 39121312
• Brand Name: APPLETON.
• Model: BBU
• Installation: THREADED FEMALE
