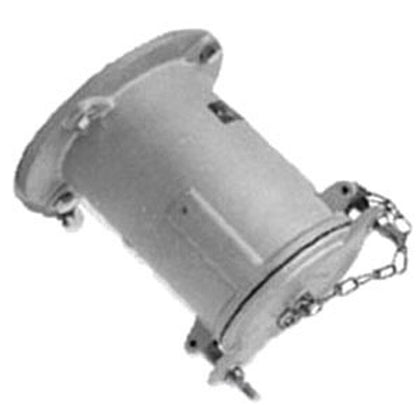

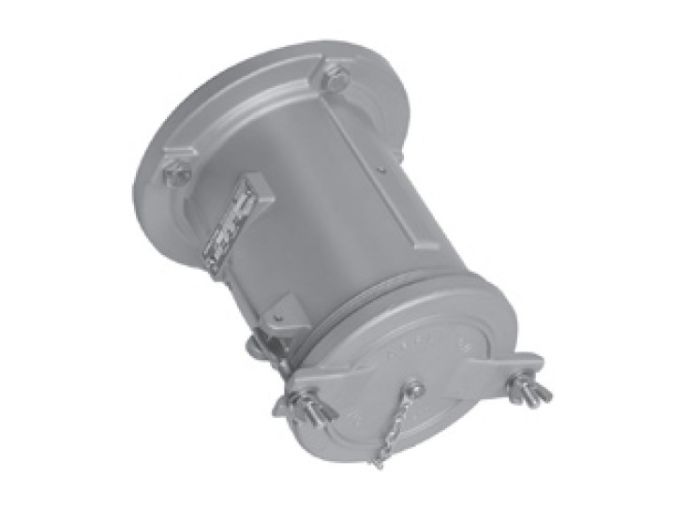

Appleton AR20033 Receptacle 200 Amp

Product Description

The APPLETON AR20033 is a Powertite pin and sleeve receptacle. Rated for 600V AC and 250V DC, this 200A receptacle is suitable for 3-pole, 3-wire systems. It features a copper-free aluminum construction and a pressure wire terminal. Ideal for motor generator units, welders, and shipping docks.

• Neoprene bushing prevents water entrance and resists hydrocarbon deterioration.
• Locking screw prevents plug cable collar from backing off.
• Contacts exert constant pressure for electrical continuity.

Product Highlights

The APPLETON AR20033 receptacle ensures reliable power connections in demanding industrial environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AR20033

Technical Specifications

• Amps: 200
• Type: Receptacle
• Volts AC: 600
• Brand: Appleton
• Part Number #: AR20033
• SKU #: 2202745
• Manufacturer Part Number: AR20033
• Manufacturer: Appleton
• Product Series: Powertite
• Family Series: Appleton Plugs & Receptacles, Powertite Series
• Connection Type: Receptacle
• Connection Description: Non-Fusible
• Current Rating: 200 A
• Voltage: 250 V, 600 V
• Frequency: 50-400 Hz
• Number of Poles: 3
• Number of Wires: 3
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Wire Size Range: 2/0 AWG
• Material: Metallic
• Terminal Type: Pressure Wire
• NEMA Rating: NEMA 3, NEMA 3R, NEMA 4
• Approvals: CSA, UL
• Comments: Shell Only, For Ordinary Locations
