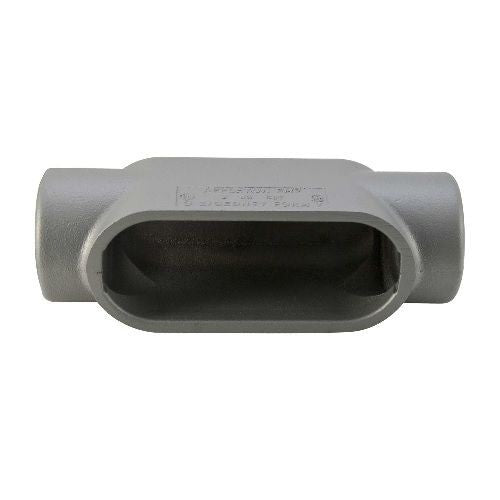

Appleton APPC47 FM7 Conduit Outlet Body

Product Description

The APPLETON APPC47 FM7 Conduit Outlet Bodies connect and change the direction of conduit runs. They facilitate bends in conduit systems and allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

• Serve as pulling fittings
• Make bends in conduit system
• Provide openings for splicing
• Connect and change direction of conduit runs

Product Highlights

These outlet bodies are suitable for use with rigid steel, rigid aluminum conduit, and IMC. They are UL and CSA approved.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: APPC47

Technical Specifications

• Manufacturer Part Number: APPC47
• Manufacturer: Appleton
• Product Series: FM7
• Family Series: Appleton Conduit Outlet Bodies, FM7 Series
• Description: 1 1/4 FM7 BODY
• Style: Threaded Iron
• Shape: C
• Number of Hubs: 2
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 1-1/4 "
• Composition: Grayloy-Iron
• Hazardous Location: Yes
• Approvals: CSA, UL
• Hub Size: 1-1/4 in
• Material: Grayloy Iron
• Capacity: 20 cu-in
• Enclosure: NEMA FB-1
• Finish: Triple Coat
• Form: 7
• Type: Type C
• Application: For rigid steel, rigid aluminum conduit and IMC
• Standard & Approvals: UL 514A/514B/E2527, CSA C22.2 No. 18.3, CSA 065183
