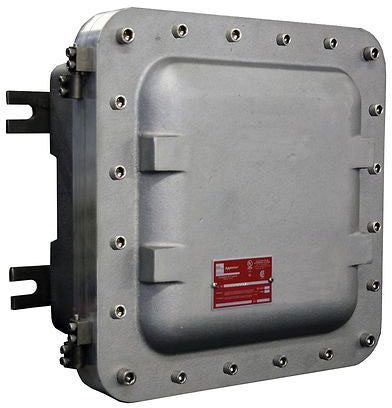

Appleton AJBEW181808 Junction Box Power Explosion-Proof Wt 4 INCH

Product Description

The Appleton AJBEW181808 is an explosion-proof junction box designed for hazardous locations. This product features a hub size of four inches and overall dimensions of twenty-three point thirty-eight inches by twenty-three point thirty-eight inches by eleven point ninety-four inches. The junction box is suitable for vertical or horizontal mounting using slotted feet. It is made from sand cast copper-free aluminum, ensuring corrosion resistance and durability. The cover type is both bolt-on and hinged, facilitating easy access during maintenance.

• UL 886 and CSA C22.2 approved
• IP66 rated for dust and water resistance
• Includes stainless steel cover bolts and neoprene O-rings

Product Highlights

This junction box is essential for installations in hazardous environments, where electrical connections must be protected from explosion risks.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer: Appleton

Technical Specifications

• UPC: 78138184661
• Body Material: Sand Cast Copper-Free Aluminum
• Body Finish: Shot Blast
• Cover Material: Sand Cast Copper-Free Aluminum
• Cover Finish: Shot Blast
• Mounting: Vertical/Horizontal with Slotted Feet
• Enclosure Class: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G
• Hub Size: 4 INCH
• Overall Size: 23.38 INCH L x 23.38 INCH W x 11.94 INCH D
• Inner Size: 18.25 INCH L x 18.25 INCH W x 7.75 INCH D
• Cover Type: Bolt-On, Hinge
• Approval: UL 886, CSA C22.2
• Application: Hazardous Location, Used for Terminal, Splicing Wire, Pull Box, Bus Box
