Appleton AEE23 30A 3/4 Unilet

Product Description

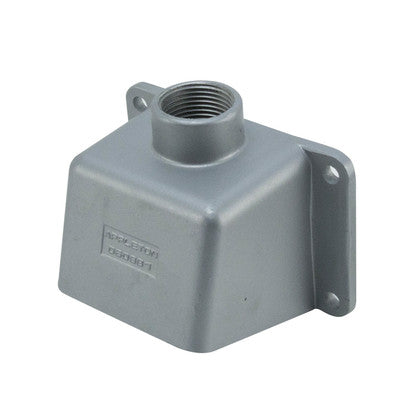

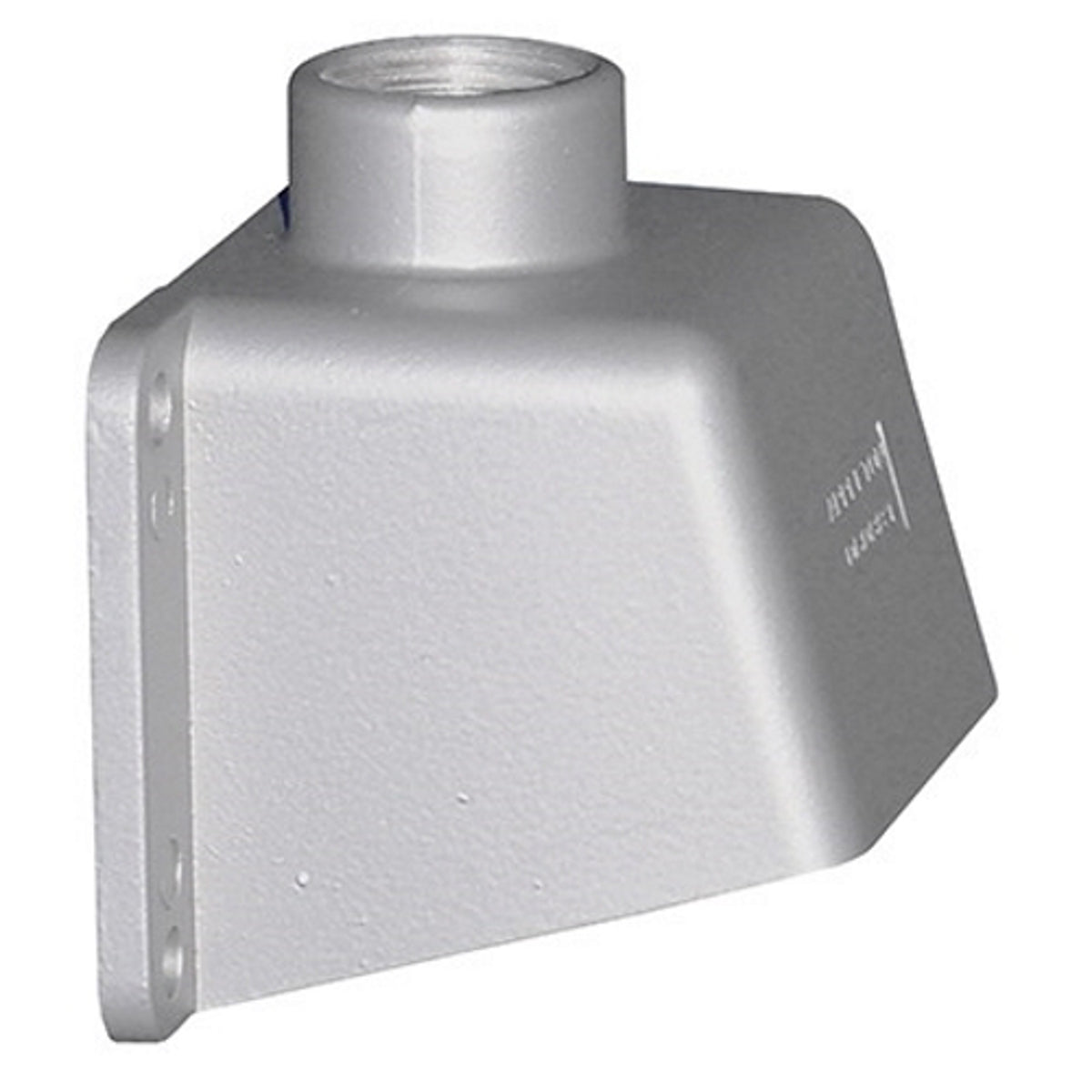

The APPLETON AEE23 is an AE Series Mounting Box with one outlet, constructed from copper-free aluminum. It features a 3/4 IN hub cable entry and is designed for Powertite 30 AMP receptacles. Mounting is facilitated via lugs, and the box has an epoxy powder coat finish. It is designed with an angle opening.

• Constructed from copperfree aluminum
• Features a 3/4 IN hub cable entry
• Designed for Powertite 30 AMP receptacles

Product Highlights

This mounting box provides a secure and reliable power solution for various applications, including welders, generators, and compressors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AEE23
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: AEE23
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Powertite 30 AMP Receptacles
• Cable Entry: (1) 3/4 IN Hub
• Knockouts: No
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Mounting: Lugs
• Special Features: With angle opening
• Item Type: AE Series Mounting Box
• Length: 4.60 Inch
• Width: 4.50 Inch
• Height: 5.00 Inch
• Size: 3/4
• Device Rating: 30 Ampere
• Body Material: Epoxy Powder Coated Copper Free Aluminum
• Number of Mounting Lugs: 2
• Hub Size: 3/4 Inch
• Approval: UL 1682/1686
• Used On: Pin and Sleeve Receptacle
• Depth: 3.33 in
• Series: AE Series
• Suitable For Use With: 30 A Pin and Sleeve Receptacles
• Type: Weatherproof
• Amps: 30
• NEMA Enclosure Rating: Type 4
• UPC: 781381229395
