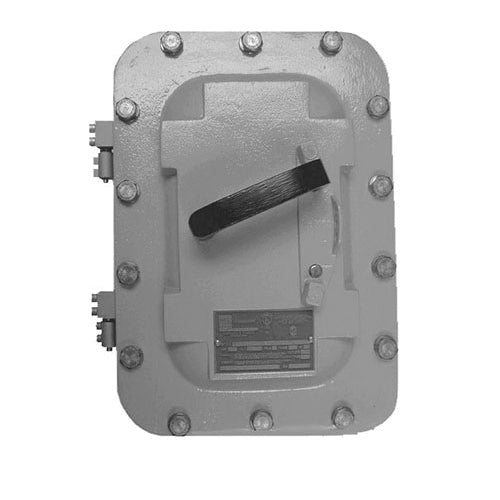

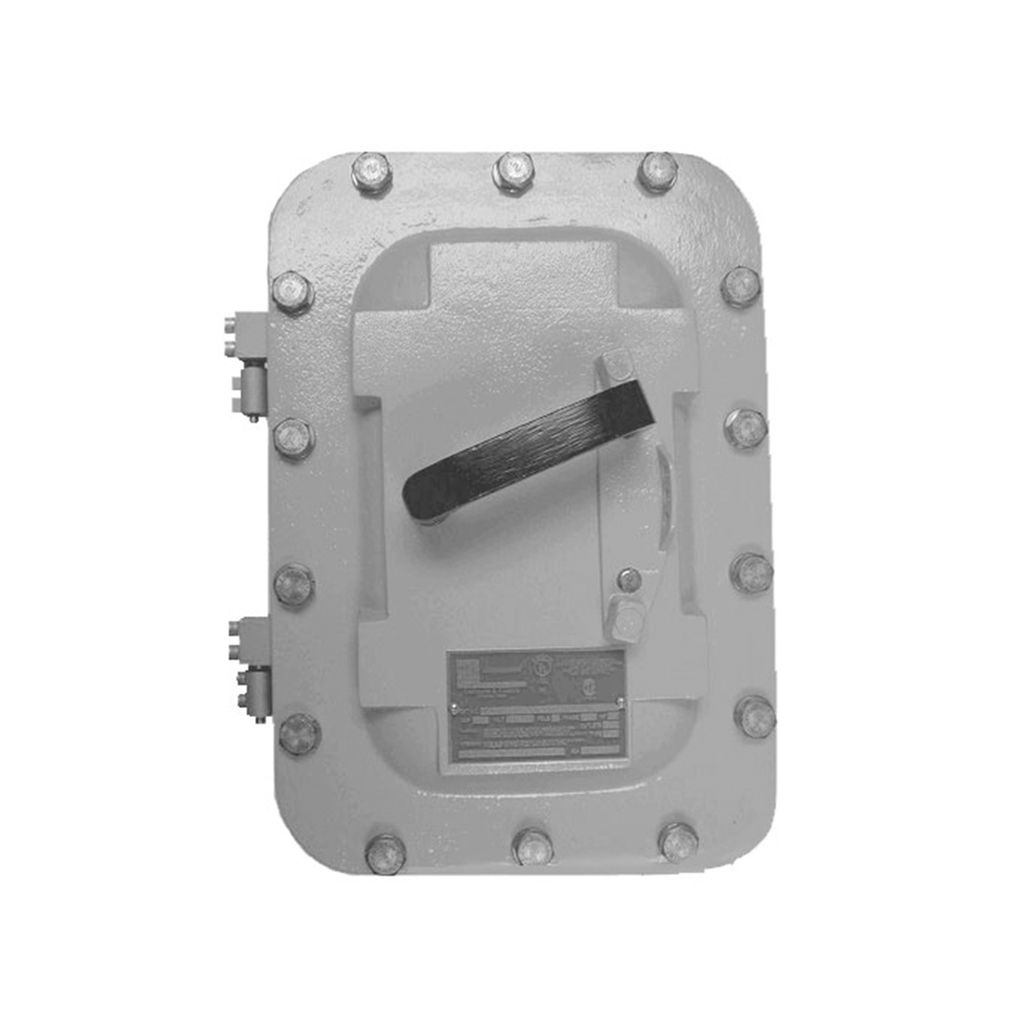

Appleton AEAB6036DS Non-Fused Disc. Switch 60A

Product Description

The Appleton AEAB6036DS non-fused disconnect switch provides explosionproof protection in hazardous locations where materials are handled or stored. This 60A switch is used for overload and short circuit protection and for lighting and power circuit control. It is suitable for commercial and industrial applications.

• Explosionproof and dust-ignitionproof design
• Features a precision machined flame path and O-ring gasket for watertight integrity
• Equipped with an external operating handle and lockable disconnect operators

Product Highlights

The Appleton AEAB6036DS is a durable metallic enclosure with a non-fusible disconnect switch for industrial and commercial applications. It offers reliable performance in hazardous environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AEAB6036DS
• Country of Origin: US

Technical Specifications

• Brand: Appleton
• Manufacturer Part Number: AEAB6036DS
• Finish: Epoxy Powder Coated
• Material: Copper Free Aluminum
• Product UPC: 78138184803
• 12-Digit UPC: 781381848039
• Poles: 3
• Mounting: Surface
• Volts AC: 600
• Amps: 60
• Product Series: AE
• Family Series: Appleton Disconnect Switches, AE Series
• Description: Explosionproof Disconnect Switch, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 600 VAC, 125/250 VDC, Current Rating 60 Ampere, Number of Poles 3, Fuse Provision Non-Fusible, Operator Type External Handle, Cover Type Bolted,
• NEMA Rating: NEMA 4, NEMA 4X
• Current Rating: 60 A
• Operator Type: External Handle
• Mounting Type: Bolt
• Enclosure Composition: Metallic
• Approvals: UL
• Actuator Type: External Handle
• ARRA Compliant: Y
• Buy American Compliant: Y
• Catalog Number: AEAB6036DS
• Enclosure Type: NEMA 4/4X/7/9
• EU RoHS Indicator: N
• Height: 11.00 in
• Length: 16.20 in
• Number Of Poles: 3
• Number of Wires: 3
• Phase: 3
• Series: AE Series
• Standards: ARRA CompliantBuy American Act CompliantNEC Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIUL 1203UL File No. E84577
• Terminal Type: Ground Lug
• Type: Dust-Ignitionproof Explosionproof Hinged Non Fused
• UNSPSC: 39121601
• UPC 11: 78138184803
• UPC 12: 781381848039
• Width: 13.00 in
• Manufacturer: Appleton
• Amperage Rating: 60 A
• Horsepower: 60/15 hp
• Voltage Rating: 600/120 to 250 VAC//VDC
