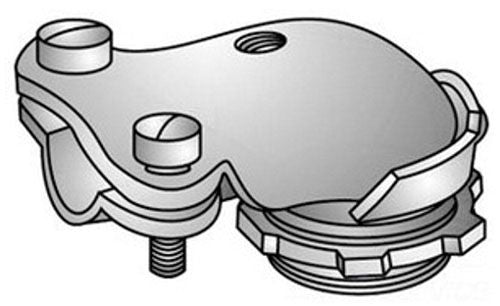

Appleton ACV-938 90 Degree Flex Conduit Connector 3/8 in

Product Description

The APPLETON ACV-938 is a 3/8-inch, 90-degree flexible conduit connector designed for securing flexible metallic conduit (FMC) to an electrical enclosure or junction box. The two-screw clamping design holds the conduit firmly in place without crushing the armor, maintaining a reliable mechanical connection in finished installations. At 0.11 pounds, it is lightweight and easy to handle during overhead or tight-space work. Electricians use this fitting where a right-angle entry is required, reducing stress on the conduit run and keeping wiring neat inside panels and enclosures.

This connector is suited for residential and light commercial electrical installations where 3/8-inch FMC terminates at a box or enclosure knockout. The 90-degree angle makes it particularly useful in equipment connections, motor terminations, and fixture drops where a straight connector would create an awkward bend in the conduit. It fits standard 3/8-inch trade-size flexible conduit and installs into a compatible knockout opening.

Key Features

• 90-degree body angle reduces conduit stress at the termination point
• Two-screw clamping secures 3/8-inch FMC without deforming the armor
• Lightweight construction at 0.11 pounds for easy single-hand installation
• Compact profile suited for tight enclosure and panel installations
• Compatible with standard knockout openings for 3/8-inch trade-size conduit

Compatibility

Designed as an OEM-style fitting for use with 3/8-inch trade-size flexible metallic conduit in standard electrical enclosures and junction boxes with appropriately sized knockout openings.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements for flexible conduit terminations. De-energize the circuit and verify absence of voltage before opening any enclosure. Insert the connector through the knockout, secure the locknut, then seat the conduit into the fitting and tighten both clamping screws firmly and evenly. Do not overtighten the clamping screws to the point of distorting the conduit armor.

Technical Specifications

• Trade Size: 3/8 inch
• Body Angle: 90 degrees
• Clamping Screws: 2
• Conduit Type: Flexible Metallic Conduit (FMC)
• Package Dimensions (L x W x H): 7.8 inches x 6 inches x 0.08 inches
• Weight: 0.11 pounds
• UPC: 78312602065

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ACV-938
