Appleton ACP6023BC Powertite 60 Amp 2-Wire 3-Pole ST2 Clamp Ring Plug

Brand: APPLETON
SKU: ACP6023BC
Availability: Out Of Stock
$34.39
$34.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

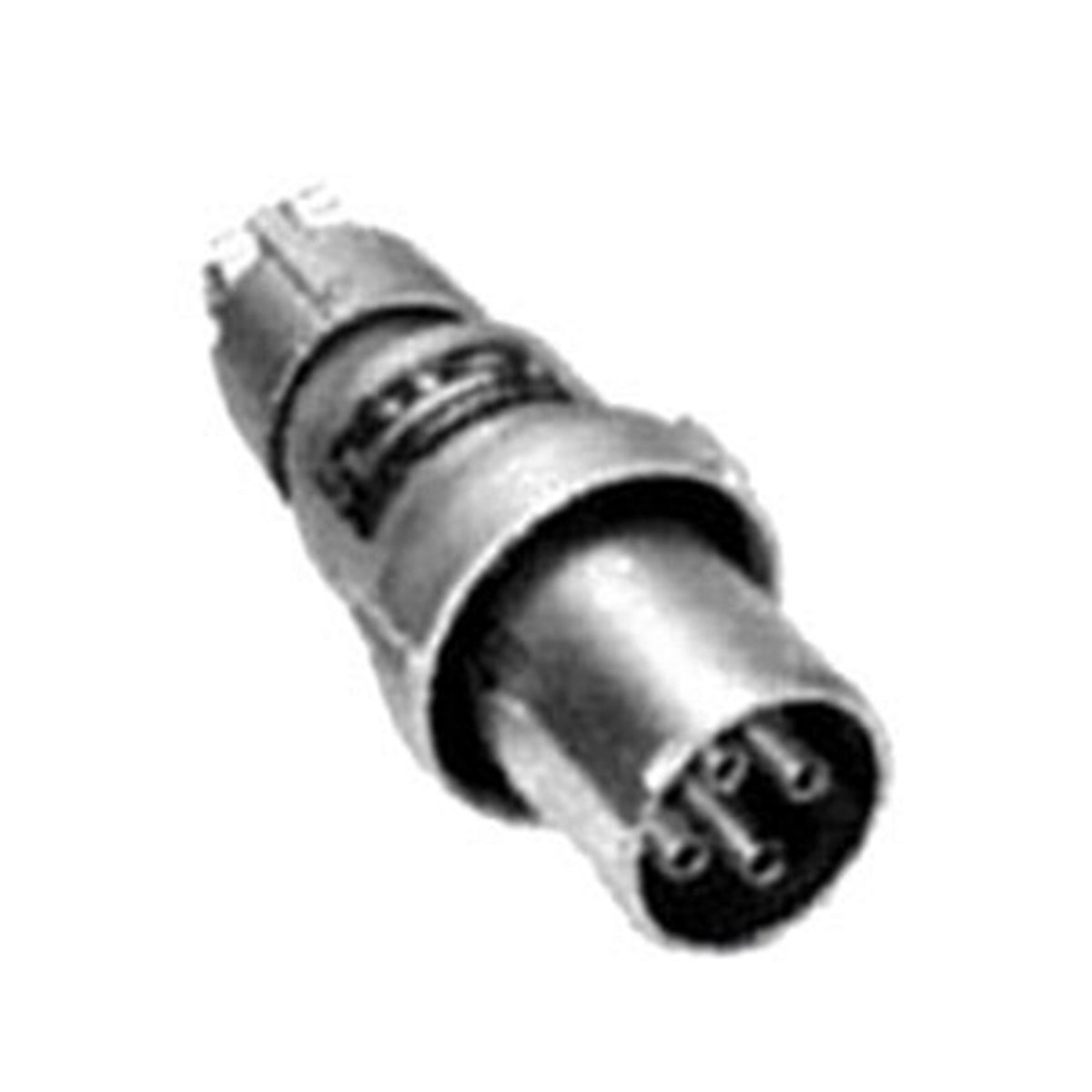

The APPLETON ACP6023BC is a Powertite grounding style 2 metallic clamp ring plug. Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps and compressors. Features an internal switch that provides a safe and quick disconnect.

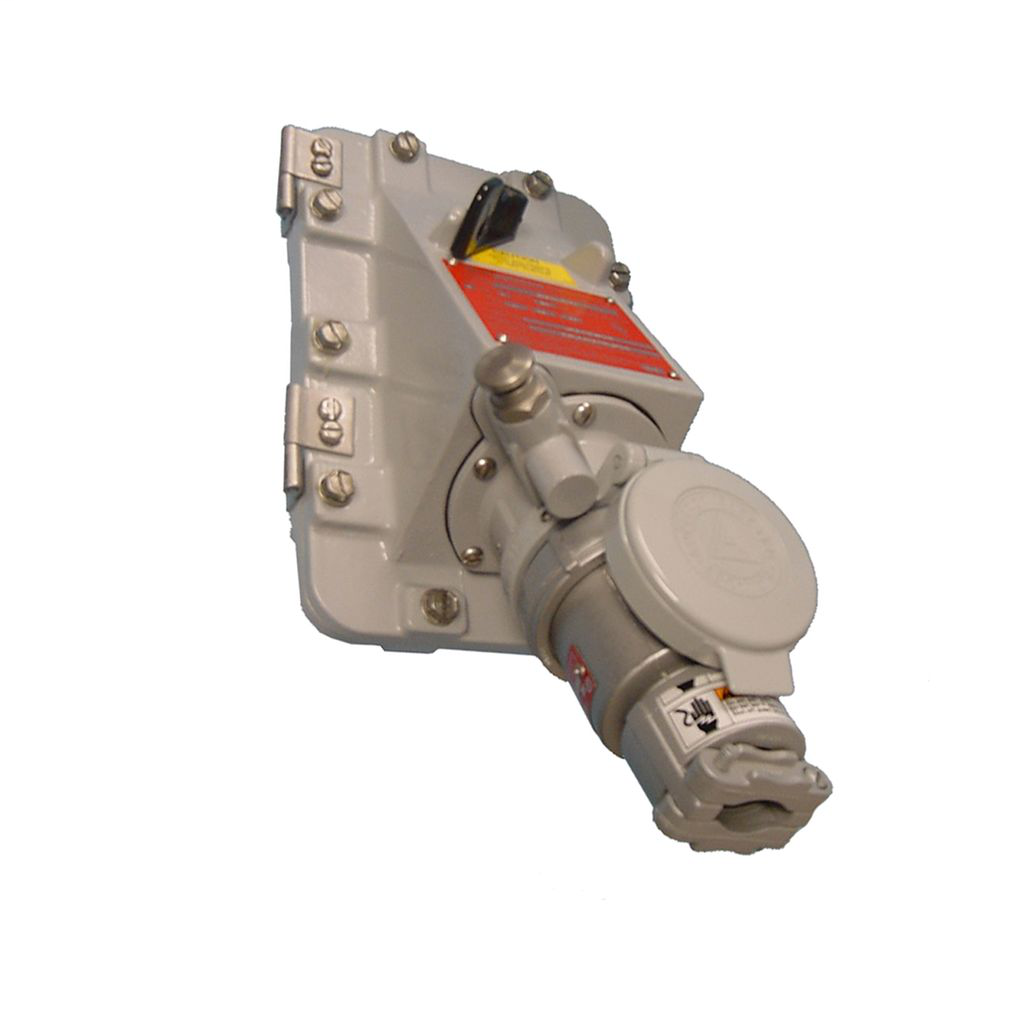

  • Internal switch provides safe and quick disconnect means; no need for separate disconnect switch
  • Positive polarization: only plugs of the same style, number of poles and amperage rating may be used with these receptacles
  • Terminal block provided in mounting box for ease of wiring. Factory wired between the receptacle and terminal block

Product Highlights

This plug is ideal for use on shipping docks, ports and other ship to shore applications and is suitable for use in locations where a weatherproof enclosure is required.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: ACP6023BC
  • Country of Origin: Mexico
Technical Specifications
Type
Grounding Style 2, Metallic
Brand
Appleton
Voltage
600 V
Amperage Rating
60
Material
Copperfree Aluminum
Sub Brand
Powertite
Used With
ADR6023 Receptacle and ARC6023BC Connector Body
Product UPC
78138144019
12-Digit UPC
781381440196
Applications
Designed to Supply Power to Portable or Fixed Electrical Equipment Such as Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus
TC Connection
Pressure Wire Terminal
Conductor Size
6-2 AWG Building, 6-4 AWG Extra Flex
Number of Wires
2
Temperature Rating
-40 to 107 C
Environmental Conditions
Temperature Rating: -40 To 107 DEG C
Catalog Number
ACP6023BC
Manufacturer
Appleton Electric
Country of Origin
Mexico
Made in USA
No
Application
For ADR6023 Receptacle And ARC6023BC Connector Body
Connection
Pressure Wire Terminal
NEMA Rating
NEMA 3, 3R, 4, 4X
Number of Poles
3
Phase
1
Special Features
Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 5/16 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
Standard
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
GTIN
00781381440196
Item Type
Grounding Style 2 Metallic Clamping Ring Plug
Voltage Rating
600 VAC At 50 - 400 HZ, 250 VDC
Wire Size
6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
Product Series
Powertite
Family Series
Appleton Plugs & Receptacles, Powertite Series
Description
Powertite Grounding Style 2 Metallic Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 2, Wire Size: 6 - 2 AWG Building, 6 - 4 AWG Extra Flex, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 1
Connection Type
Plug
Connection Description
Straight
Current Rating
60 A
Frequency
50-400 Hz
Lockout-Tagout
No
Auxiliary Contact
None
Built-In Strain Relief
No
Wire Size Range
6 AWG, 5 AWG, 4 AWG, 3 AWG, 2 AWG
Operating Temperature
-13-104 °F
Terminal Type
Screw
Approvals
CSA, UL
Net Weight
1.965 lbs
Gross Weight
2.24 lbs
