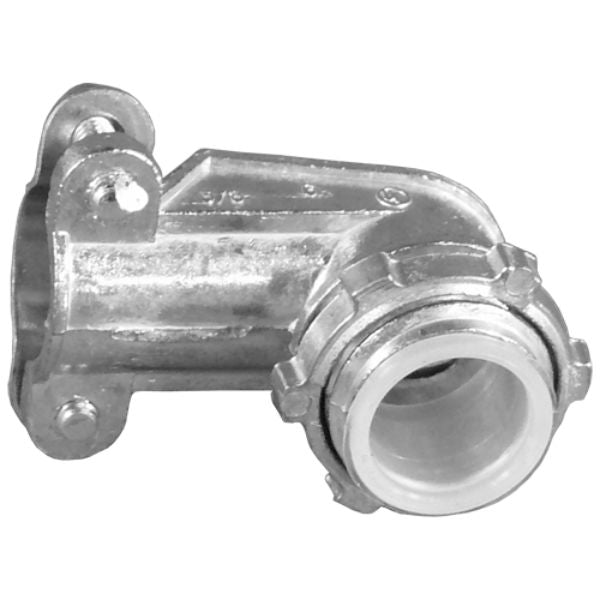

Appleton AC95 1/2 90 Degree FLEX/AC/MC Cable Connector

Product Description

Appleton AC95 is a non-insulated conduit connector designed for 1/2 inch trade size applications. This conduit connector is used to terminate flexible metal conduit or to join lengths of conduit. It is suitable for use with armored, flexible metal conduit, and metal-clad cable in dry locations.

• Die cast zinc construction
• 90-degree angle for easy installation
• Meets multiple standards including CSA and UL

Product Highlights

Ideal for making 90-degree terminations into knockout or unthreaded slip holes in electrical boxes and enclosures.

Product Information

Standard Information

• Application: To create a 90-degree termination of cable or conduit
• Type: Non-insulated

Technical Specifications

• Dimensions: 1.51 in L x 2.12 in H
• Angle: 90 deg
• Material: Die Cast Zinc
• Finish: Natural/Zinc Plated
• Trade Size: 1/2 in
• Standards: CSA 208044, CSA C22.2 No. 18.3, NEMA FB-1, UL 514B File No. E25014
• Suitable For Use With: Armored/FMC/Metal Clad Cable
