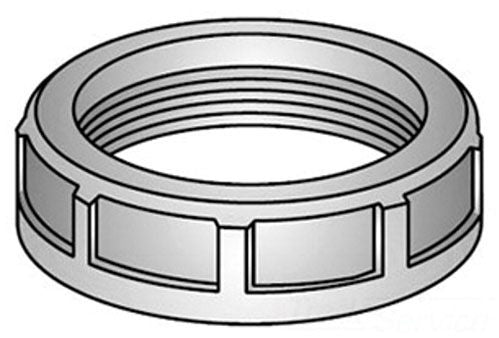

Appleton A-200 Plastic Bushing 2 Inch 150 Degree

Product Description

The APPLETON A-200 is a 2-inch plastic bushing rated for 150-degree applications, used to protect wire and cable insulation from abrasion at conduit ends. The bushing installs at the termination point of a conduit run, fitting over the inside edge of the conduit opening to eliminate sharp burrs and edges that could damage conductor insulation. This type of fitting is a standard component in commercial and industrial electrical installations and is typically installed by licensed electricians during conduit termination work.

The A-200 is suited for use in conduit systems where a 2-inch bushing is required and where the installation environment demands a 150-degree temperature rating. Common applications include panel terminations, junction box entries, and conduit-to-enclosure connections in commercial buildings, industrial facilities, and electrical distribution systems.

Key Features

• 2-inch trade size fits standard 2-inch conduit terminations
• 150-degree temperature rating suitable for demanding installation environments
• Plastic construction provides electrical insulation at conduit ends
• Protects wire and cable insulation from conduit edge abrasion
• Installs without tools for fast conduit termination work

Compatibility

Designed as an OEM-style replacement bushing for standard 2-inch conduit terminations in commercial and industrial electrical conduit systems.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements for conduit terminations. De-energize all circuits in the affected conduit before beginning work. The bushing is pressed or threaded onto the conduit end prior to pulling wire or cable. Inspect the bushing seat for proper seating to ensure full insulation protection at the termination point.

Technical Specifications

• Trade Size: 2 inches
• Temperature Rating: 150 degrees F
• Material: Plastic
• UPC: 78312600315

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: A-200
