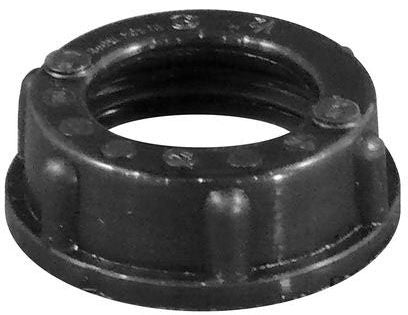

Appleton A-100 Plastic Conduit Bushing 1 Inch

Product Description

The APPLETON A-100 is a 1-inch plastic conduit bushing rated for use at 150 degrees F. Conduit bushings are installed at the end of a conduit run where it enters an enclosure, panel, or junction box. The bushing protects wire insulation from abrasion at the conduit termination point. This type of fitting is a standard component in electrical conduit installations and is typically installed by licensed electricians during rough-in or service work.

The A-100 is suited for 1-inch conduit terminations in residential, commercial, and light industrial electrical installations. It is used wherever a conduit end must be protected to prevent damage to conductors passing through. The 150-degree F temperature rating makes it appropriate for general-purpose wiring environments where moderate heat exposure is expected.

Key Features

• 1-inch trade size fits standard 1-inch conduit ends
• Plastic construction provides electrical insulation at the conduit termination
• 150 degrees F temperature rating for general-purpose applications
• Installs at enclosure or panel knockouts to protect wire insulation from conduit edges

Compatibility

Designed as an OEM-style replacement or standard conduit fitting for use with 1-inch electrical conduit terminations in general-purpose enclosures and panels.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for conduit wiring methods. De-energize the circuit and verify the panel or enclosure is powered down before working at the termination point. The bushing is threaded or pressed onto the conduit end before conductors are pulled through. Inspect the bushing seat for proper seating to ensure full protection of wire insulation.

Technical Specifications

• Trade Size: 1 inch
• Temperature Rating: 150 degrees F
• Material: Plastic
• UPC: 78312600306

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: A-100
