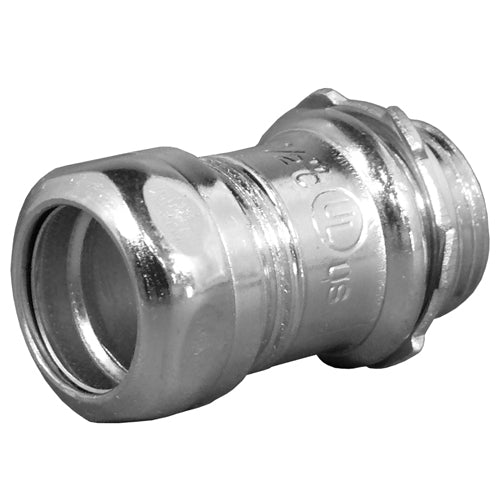

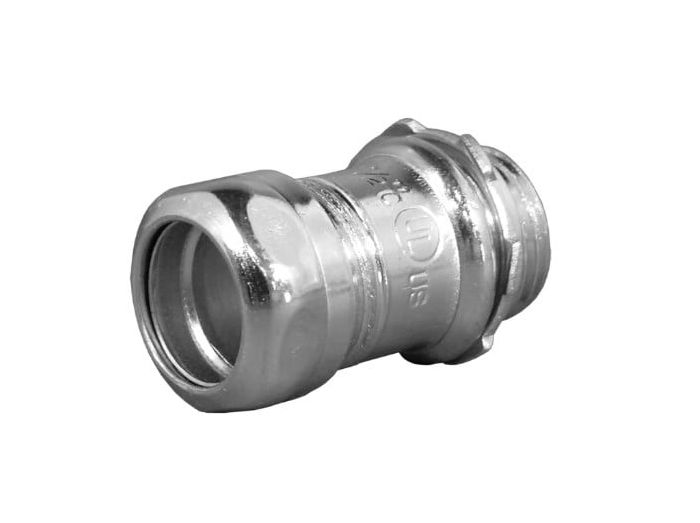

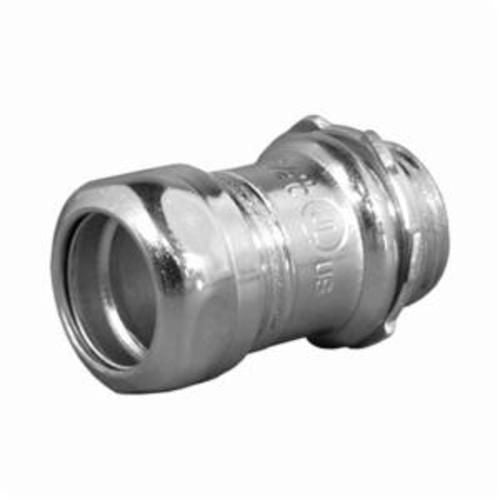

Appleton 7400ST 4 inches Emt Compression Connector Insulated Steel

Product Description

The Appleton 7400ST 4" Emt Compression Connector is an insulated steel connector. It is designed to ground and secure EMT raceways to boxes and enclosures. The connector features a male NPS thread connection and an insulated throat rated to 90 degrees C. Zinc electroplating provides enhanced corrosion resistance.

• Male NPS thread connection
• Concrete-tight
• Insulated throat connector rated 90 deg C

Product Highlights

The Appleton 7400ST is a reliable steel EMT compression connector with an insulated throat and zinc electroplated finish.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7400ST
• Country of Origin: IN

Technical Specifications

• Material: Steel
• Trade Size: 4 in
• Dimensions: 3.19 in L
• Diameter: 3-3/16 in
• Standard & Approvals: UL 514B/E14815/E14895 Listed, CSA 028507/C22.2 No 18.3 Certified, cUL E14815 Listed, NEMA FB-1, RoHS Complaint
• Application: For grounding and securing EMT raceways to boxes and enclosures
• Type: Insulated Throat Straight
• Finish: Zinc Electroplated
• Series: 7000S
• Connection: Male NPS Thread
• Insulation: Insulated Throat
• Temperature Rating: 90 DEG C
• NEMA Rating: FB-1
• Approvals: CSA, UL
• Hub Type: Male NPS Thread
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Angle: Straight
• Hub Size: 4 "
• Protection Rating: Concrete Tight
• Manufacturer Part Number: 7400ST
• Manufacturer: Appleton
