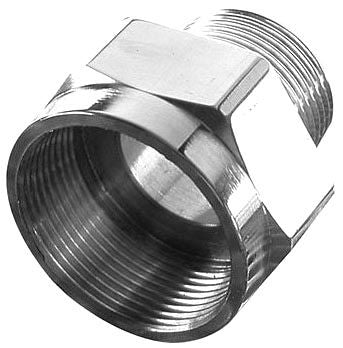

Appleton 737DM5T25 Threaded Cable Gland Adapter 3/4 in M40

Product Description

The Appleton 737DM5T25 is a threaded cable gland adapter designed for hazardous locations. It features a three-quarter inch interior thread and an M40 exterior thread, making it suitable for connecting different cable entry devices and equipment. This adapter maintains the integrity of the enclosure rating when properly installed with a sealing gasket.

• Suitable for hazardous area applications
• Operating temperature range from minus sixty to one hundred degrees Celsius
• Brass material with a nickel-plated finish

Product Highlights

Use this adapter to facilitate safe and effective connections in environments where dissimilar thread sizes are present.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton

Technical Specifications

• Model Series: 737
• Interior Thread Size: 3/4 in
• Exterior Thread Size: M40
• Operating Temperature: -60 to 100 deg C
• Material: Brass
• Finish: Nickel Plated
• Standards: UL886/1203, CSA C22.2 No. 30, Zone 1, 2, 21, 22 ATEX/IECEx
• Certification: NEC/CEC Certified
