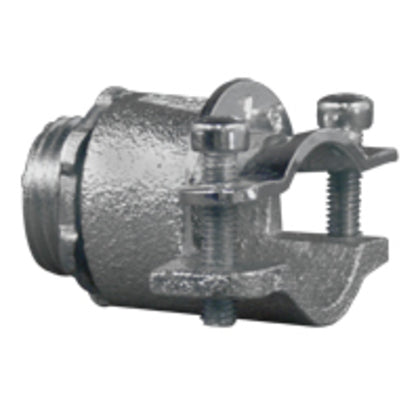

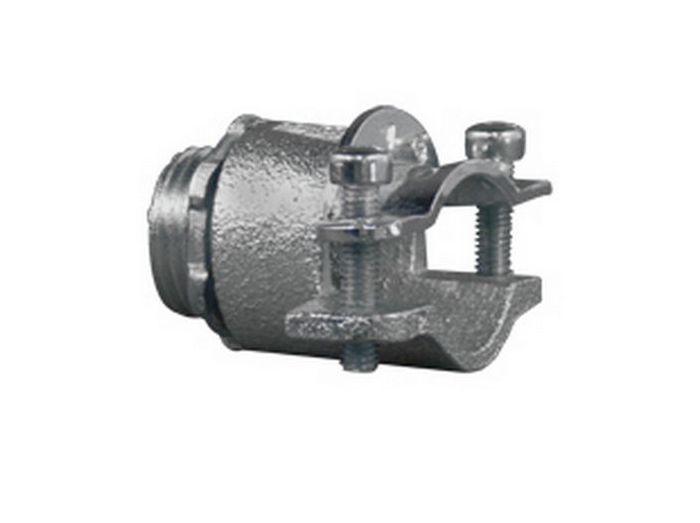

Appleton 7288V 1/2 inches Malleable 2-Screw Flex/Bx Connector

Product Description

The APPLETON 7288V is a 1/2" Malleable 2-Screw Flex/Bx Connector. It is designed for grounding and securing armored ground wire and nonmetallic sheathed cable to boxes and enclosures. This straight conduit connector features a non-insulated throat and is made from die-cast zinc.

• Male hub NPS thread connection
• For grounding, securing armored ground wire and nonmetallic sheathed cable to boxes and enclosures
• Furnished with locknut

Product Highlights

The APPLETON 7288V connector is suitable for use with armored/FMC cable, offering a reliable solution for cable connections.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7288V
• Country of Origin: United States

Technical Specifications

• Material: Die Cast Zinc
• Trade Size: 1/2 "
• Application: For grounding, securing armored ground wire and nonmetallic sheathed cable to boxes and enclosures
• Type: Non-Insulated Throat Straight
• Dimensions: 1.09 in L x 0.44 in W
• Suitable For Use With: Armored/FMC Cable
• Family Series: Appleton Fittings
• Conduit/Cable Type: Armored Cable, Non-Metallic Sheathed Cable
• Connection Type: Clamp
• Angle: Straight
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Manufacturer: Appleton
