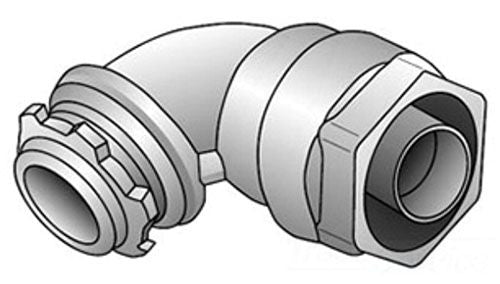

Appleton 4Q-975 90 Degree Liquidtight Connector 3/4 in

Product Description

The APPLETON 4Q-975 is a 90-degree liquidtight conduit connector designed for use with flexible liquidtight conduit in electrical installations. This connector provides a secure, watertight termination point where flexible conduit meets an enclosure or junction box, maintaining the integrity of the liquidtight system. Sized for 3/4 inch conduit, it is suited for environments where moisture, dust, or mechanical protection is required. Electricians and electrical contractors install this type of connector in commercial, industrial, and utility applications where rigid termination with angular routing is needed.

This 90-degree connector is used in applications requiring a right-angle transition from flexible liquidtight conduit to a knockout entry on an enclosure, panel, or box. The angled body eliminates the need to bend the conduit sharply, reducing stress on the flexible section and maintaining a clean, code-compliant installation. Typical install scenarios include motor connections, HVAC equipment wiring, and other service points where vibration isolation or flexible routing is necessary.

Key Features

• 90-degree body angle for right-angle conduit entry without sharp conduit bends
• Sized for 3/4 inch liquidtight flexible conduit
• Liquidtight design maintains moisture and dust protection at the termination point
• Compatible with standard knockout entries on enclosures, panels, and junction boxes

Compatibility

Designed as an OEM-style fitting for use with 3/4 inch liquidtight flexible conduit systems in residential, commercial, and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits before working on any conduit termination or enclosure entry point. Ensure the knockout diameter matches the connector trade size before installation, and tighten the locknut securely to maintain the liquidtight seal. Do not overtighten or force the connector into undersized knockouts.

Technical Specifications

• Conduit Trade Size: 3/4 inch
• Body Angle: 90 degrees
• Connection Type: Liquidtight
• UPC: 78312661865

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-975
