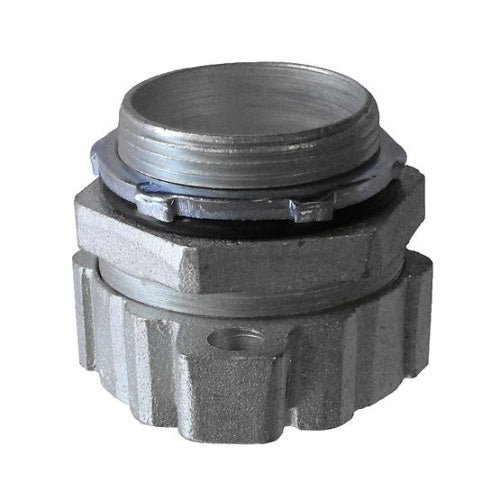

Appleton 4Q-250 Conduit Connector 2-1/2 IN Straight

Product Description

The APPLETON 4Q-250 is a O-Z/Gedney Conduit Connector, designed as concretetight, liquid tight, oiltight, and raintight. It is a straight connector for use with liquid tight flexible metallic conduit. Features a tapered threaded male NPT hub and a compact, slim diameter with small turning radius.

• Tapered threaded male NPT hub
• Compact, slim diameter with small turning radius
• Intrinsically safe

Product Highlights

This connector grounds and seals liquidtight flexible metal conduit to boxes and enclosures. It includes a locknut and KO sealing ring.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-250
• Country of Origin: United States

Technical Specifications

• Angle: Straight
• Finish: Zinc Electroplated
• Series: 4Q Series
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Type: Concretetight Liquid Tight Oiltight Raintight
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• Manufacturer: Appleton
• Component: Liquidtight Connector
• Manufacturer Part Number: 4Q250LT
• Product Series: 4Q Grounding
• Family Series: Appleton Fittings, 4Q Grounding Series
• Description: 2-1/2 IN STR CONN LFMC W/LUG
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Trade Size: 2-1/2 "
• Hub Size: 2-1/2 "
• Hub Type: Male NPT Thread
• Grounding: Yes
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA 4, NEMA FB1
• Hazardous Location: Yes
• Approvals: CSA, UL
