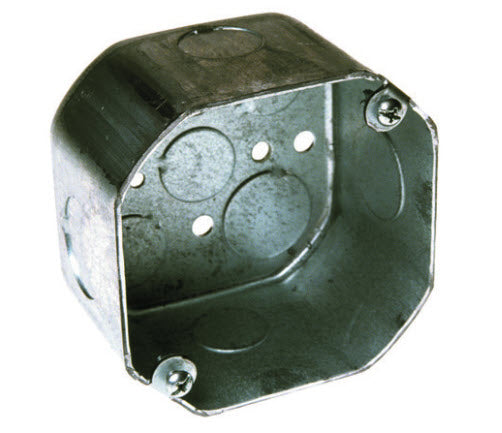

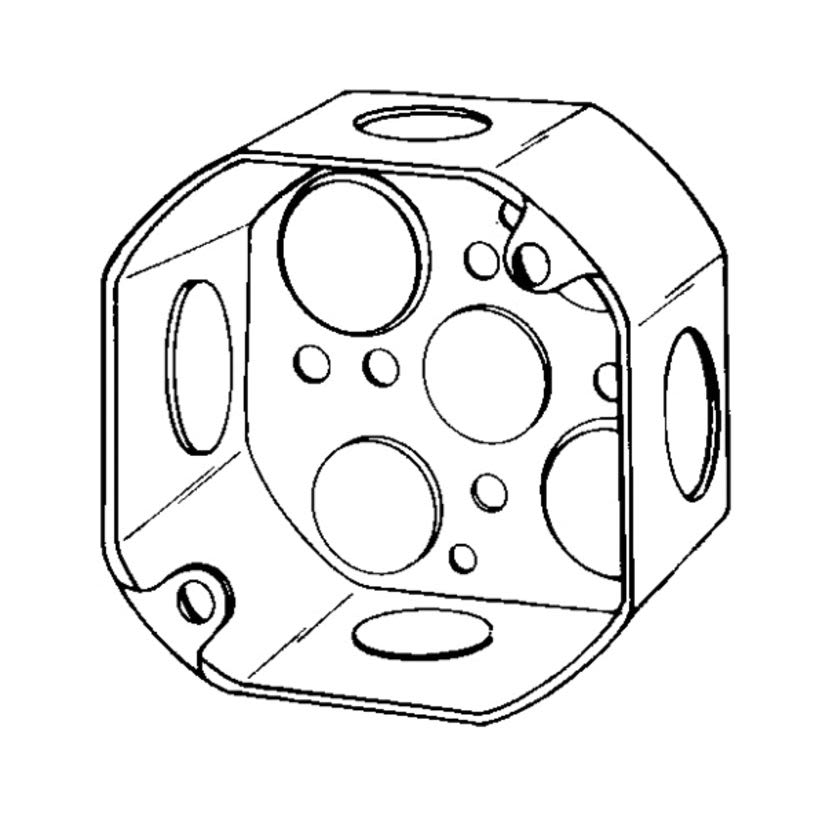

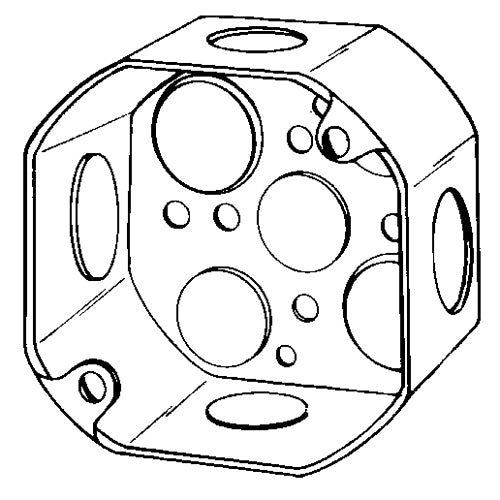

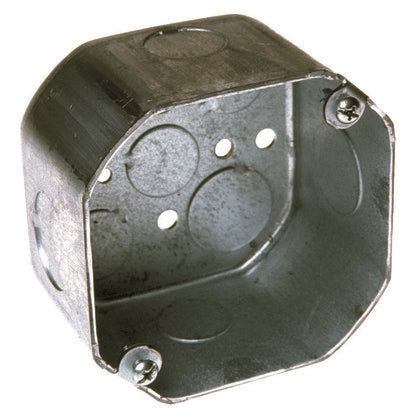

Appleton 4OD-SPL ETP Octagon Box 21.5 cu-in Capacity 2-1/8 in D

Product Description

The APPLETON 4OD-SPL ETP Octagon Box is made of steel with a capacity of 21.5 cu-in and dimensions of 2-1/8 in D. It features 9 knockouts of 1/2 in and 3/4 in sizes. Boxes with concentric or eccentric knockouts are suitable for bonding without additional bonding means where used in circuits above or below 250 VAC.

• Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
• Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
• Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls

Product Highlights

Steel octagon box with 21.5 cu-in capacity, 9 knockouts, and pre-galvanized finish suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4OD-SPL
• Country of Origin: United States

Technical Specifications

• Capacity: 21.5 cu-in
• Diameter: 4 in
• Enclosure Type: NEMA OS-1
• Finish: Pre-Galvanized
• Knockout Size: 1/2 in, 3/4 in
• Material: Steel
• Mounting Type: Bolt-On/Threaded
• Number of Knockouts: 9
• Shape: Octagon
• Series: ETP
• Application: Residential and Commercial Applications
• Standard & Approvals: UL 514A, E2527, RoHS Compliant
• Cable Entry: Knockouts
• Knockout Diameter: 1/2 in, 3/4 in
• Depth: 2.125 in
• Cubic Inches: 21.500 in
• Knockouts: Yes
• Country of Origin: United States
• Manufacturer: Emerson Electric
• Type / Style: Octagonal Box
• Brand: Appleton
• Sub Brand: ETP
• Buy American Compliant: Y
