Appleton 4O-3/4 octagon box steel 15.5 cu-in

Product Description

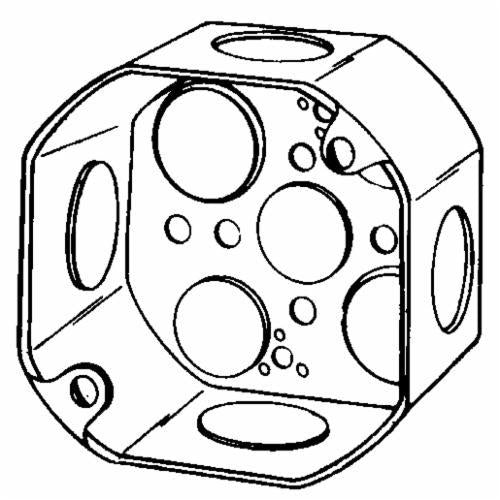

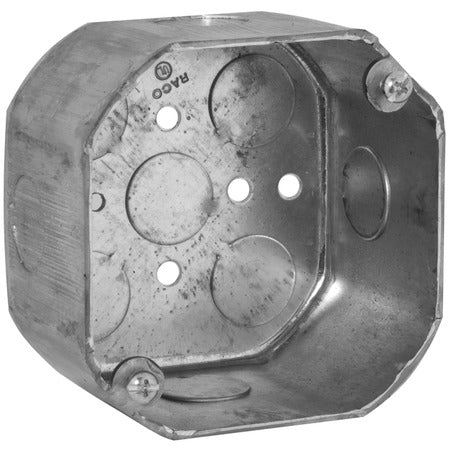

The Appleton 4O-3/4 octagon box is made of steel with a capacity of 15.5 cu-in and 9 knockouts. It has a depth of 1-1/2 inches and is suitable for residential and commercial applications. The box is pre-galvanized and NEMA OS-1 rated, ensuring durability and protection.

• Suitable for bonding without additional means in circuits above or below 250 VAC
• Acceptable for use in two-hour fire-rated walls
• Features a ground tapped hole

Product Highlights

The Appleton octagon box is designed for fast installs and code-ready performance in tough environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4O-3/4
• Country of Origin: US

Technical Specifications

• Application: Residential and Commercial Applications
• Cable Entry: Knockout
• Capacity: 15.5 cu-in
• Country of Origin: US
• Diameter: 4 in
• Enclosure Type: NEMA OS-1
• Finish: Pre-Galvanized
• Knockout Size: 1/2 in, 3/4 in
• Material: Steel
• Mfg Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant
• Mounting Type: Bolt-On/Threaded
• Number of Knockouts: 9
• Shape: Octagon
• Number of Outlets: 9
• Series: ETP
• Standard & Approvals: UL 514A, E2527, RoHS Compliant
• Knockout Diameter: 3/4 in
• Mounting: Screw On, Nail On
• Depth: 1 1/2 in
• Cubic Inches: 15.500 in ³
• Knockouts: Yes
• Brand: EGS
• MPN: 4O-3/4
• UPC: 687855750108
• Size: 4 X 4 X 1.5 IN
• Sub Brand: ETP
