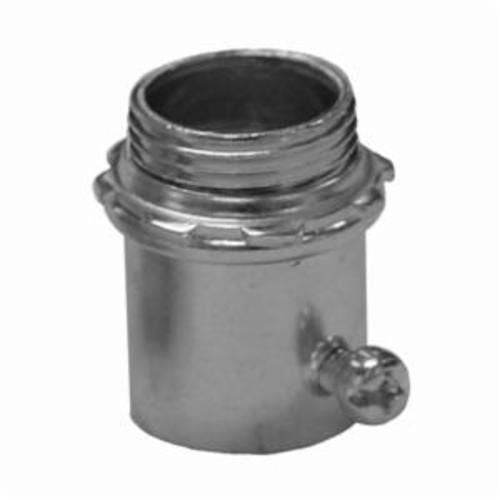

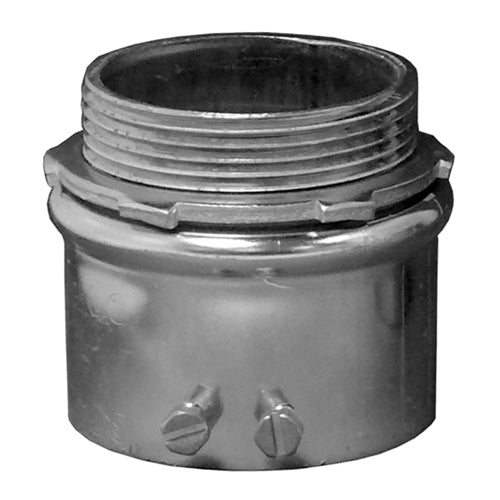

Appleton 4125ST 4000s Insulated Straight Set Screw Connector 1-1/4 in Trade

Product Description

The APPLETON 4125ST 4000S insulated straight set screw connector is 1-1/4 in trade size, designed for use with EMT conduit. It is made of steel with a zinc electroplated finish. This connector is used for grounding and securing EMT raceways to boxes and enclosures.

• Heavy steel walls
• Concrete tight when tapped
• Pre-set/pre-staked set screws
• Male hub NPS thread connection

Product Highlights

The connector features an insulated throat rated to 90 deg C and a slotted hexhead screw.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4125ST

Technical Specifications

• Color: Metallic
• Diameter: 1.69 in
• Finish: Zinc Electroplated
• Material: Steel
• Series: 4000S
• Suitable For Use With: EMT Conduit
• Trade Size: 1-1/4 in
• Type: Insulated Straight
• Mounting Type: Screw
• Application: For grounding and securing EMT raceways to boxes and enclosures
• Standard & Approvals: UL 514B/E14815/E14895 Listed, CSA 028507/C22.2 No 18.3 Certified, cUL E14895 Listed, NEMA FB-1, RoHS Complaint
• Manufacturer Part Number: 4125ST
• Manufacturer: Appleton
• Product Series: 4000S
• Family Series: Appleton Fittings, 4000S Series
• Description: 1-1/4 IN EMT SSCR CONN INSUL STEEL
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Connection Type: Set Screw
• Angle: Straight
• Hub Size: 1-1/4 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Concrete Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
