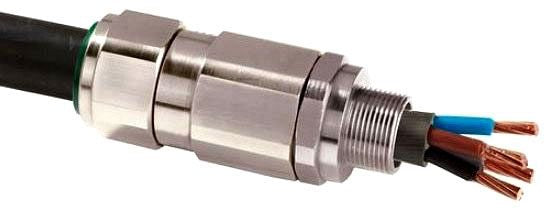

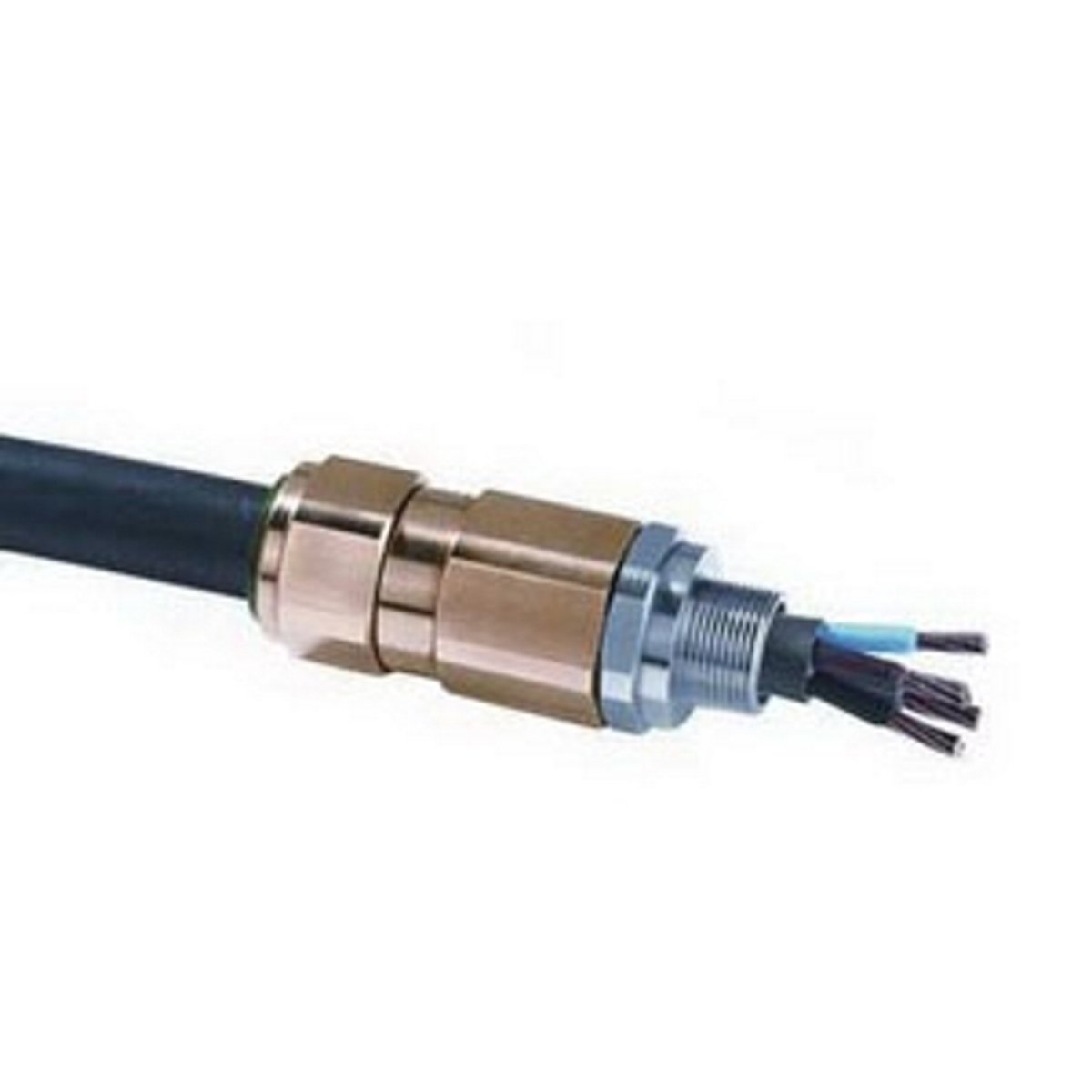

Appleton 20T35 T3CDS Cable Gland M20 Cmp

Product Description

The Appleton 20T35 T3CDS Cable Gland is designed for M20 size applications. It provides a reliable connection for armored cables, ensuring safety and durability in various environments. This cable gland is particularly suitable for hazardous areas and meets multiple safety standards.

• M20 size suited for different cable diameters.
• Constructed from nickel plated brass for corrosion resistance.
• Features a unique compensating displacement seal for pressure relief.

Product Highlights

Ideal for use in industrial settings, the Appleton 20T35 allows for easy installation and maintenance without compromising safety.

Product Information

Standard Information

• Brand: Appleton Electric
• MPN: 20T35

Technical Specifications

• Catalog Number: 20T35
• Conductor Range: Inner: 0.26 - 0.55 IN, Outer: 0.49 - 0.82 IN
• Connection: NPT
• Finish: Nickel Plated
• Material: Brass
• Application: For All Types Of Armored Cable
• Country of Origin: United Kingdom
• Standards: UL 2225, CSA C22.2 No. 174, ATEX Certification
