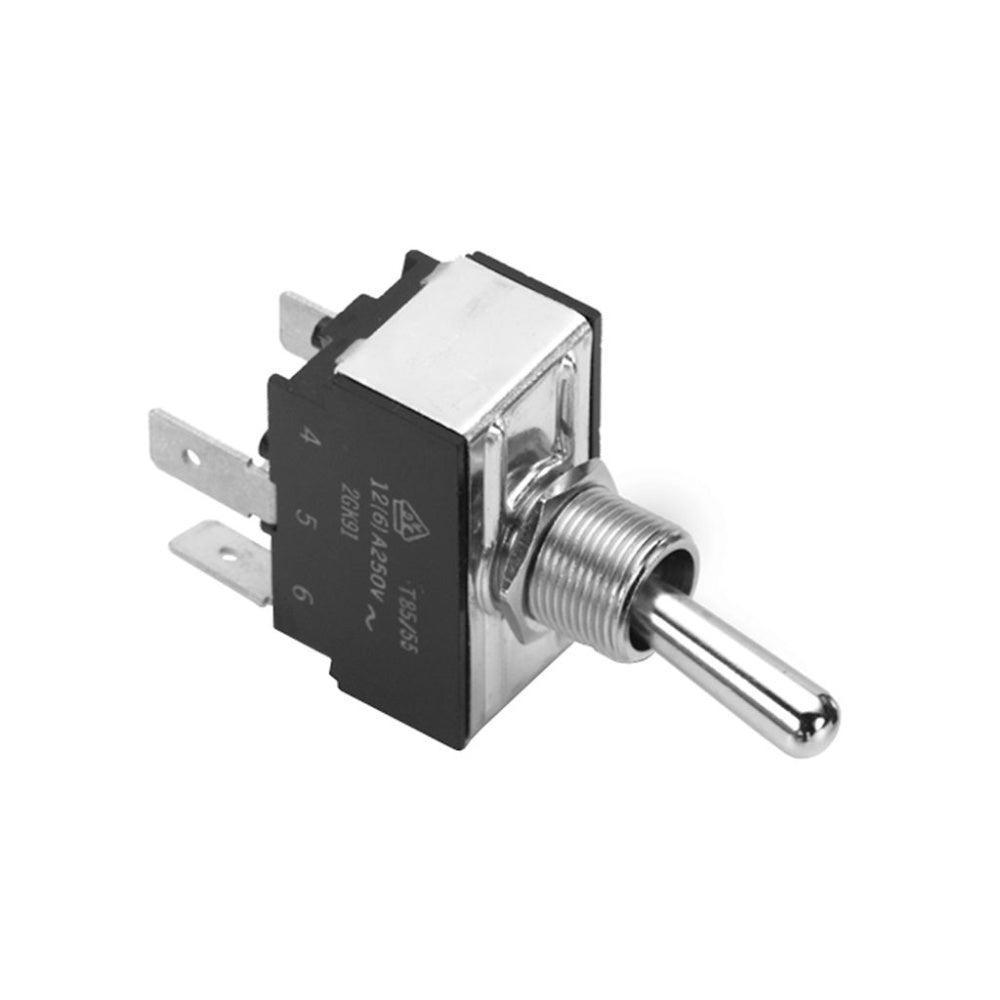

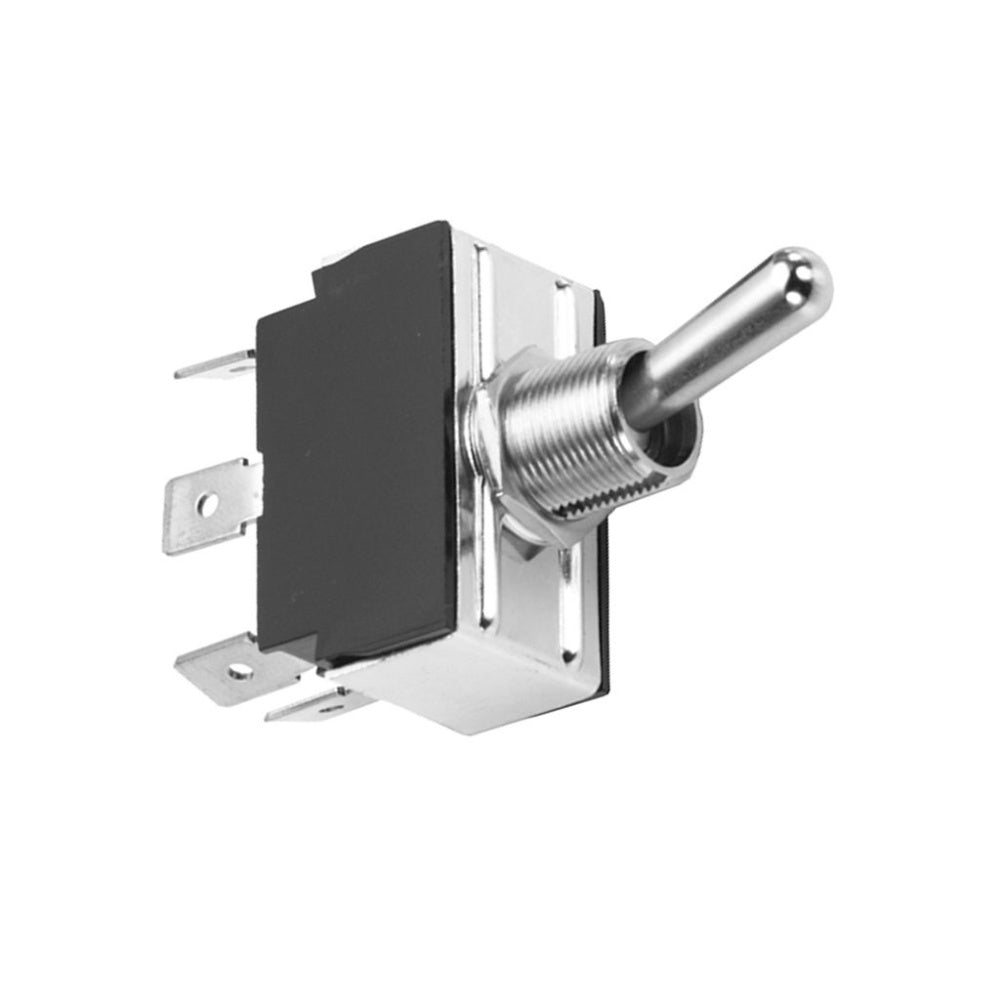

Appleton 01210003N Toggle Switch 15/10 A

Product Description

The APPLETON 01210003N is a multi-pole toggle switch designed for various applications. This switch features a metallic toggle and threaded bushing for durability. It is suitable for low voltage VDC applications and includes an indicating plate for maintained ON-OFF circuits. Ideal for use in marine, food service, generator, industrial control and office automation markets.

• Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life
• Appropriate for use in low voltage VDC applications
• Indicating plate is furnished for maintained ON-OFF circuits

Product Highlights

Multi-pole toggle switch with metallic toggle and threaded bushing, suitable for low voltage VDC applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 01210003N
• Country of Origin: Mexico

Technical Specifications

• Brand: Appleton
• Part Number #: 01210003N
• SKU #: 2209829
• Amperage Rating: 15/10 A
• Dimensions: 1.31 in L x 0.75 in W x 2.36 in H
• Series: 121
• Type: Multi-Pole
• Manufacturer Name: Emerson Electric
• UNSPSC: 39122211
• Component: Toggle Switch
• Circuit Configuration: DPDT
• Circuit Operation: On-On (maintained)
• Amps/125V: 15A/125V
• Amps/250V: 10A/250V
• Horsepower: 0.75Hp/250Vac
• Voltage: 125-250V AC
• Terminal Type: Screw
• Terminal Size: 16 AWG
• Toggle Material: Metal
• Mounting: Bushing ODxL: 15/32 x 0.47 in.
• Temperature Range: 302°F (150°C)
