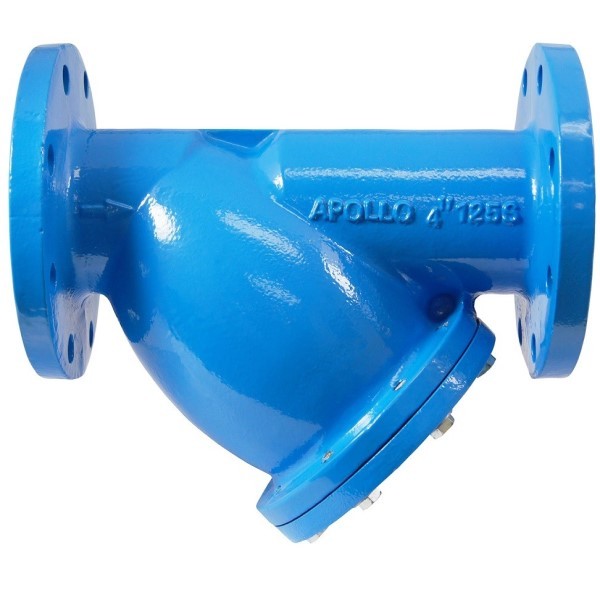

Apollo Valves YCF04P125E 4-Inch Cast Iron Wye Strainer

Product Description

The Apollo Valves YCF04P125E is a four-inch cast iron wye strainer engineered to protect piping systems from debris. Its one-piece construction features flat face flanged connections that meet ASME/ANSI 16.1 Class 125 standards. The strainer incorporates a one-eighth inch perforated stainless steel screen, ensuring effective filtration. For ease of maintenance, a tapped blow-off connection with a plug is included. The unit is epoxy coated for durability and has undergone factory pressure testing.

• Flat face flanged connections for secure installation.
• Upper and lower machined seats for accurate screen alignment.
• Bolted cover with a flat gasket seal for reliability.

Product Highlights

This wye strainer is ideal for various piping systems requiring filtration from particulate matter.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: YCF04P125E

Technical Specifications

• Nominal Size: 4 in
• Connection Type: Flat Face Flanged
• Body Material: Cast Iron
• Screen Material: 304 Stainless Steel
• Perforation Size: 1/8 in
• Blow-Off Size: 1-1/4 in NPT
• Maximum Operating Pressure: 200 psi
• Coating: Epoxy Coated
• Overall Length: 13.86 in
• Height: 15.12 in
• Valve Type: Y-Strainer
• Softgoods Material: Graphite
