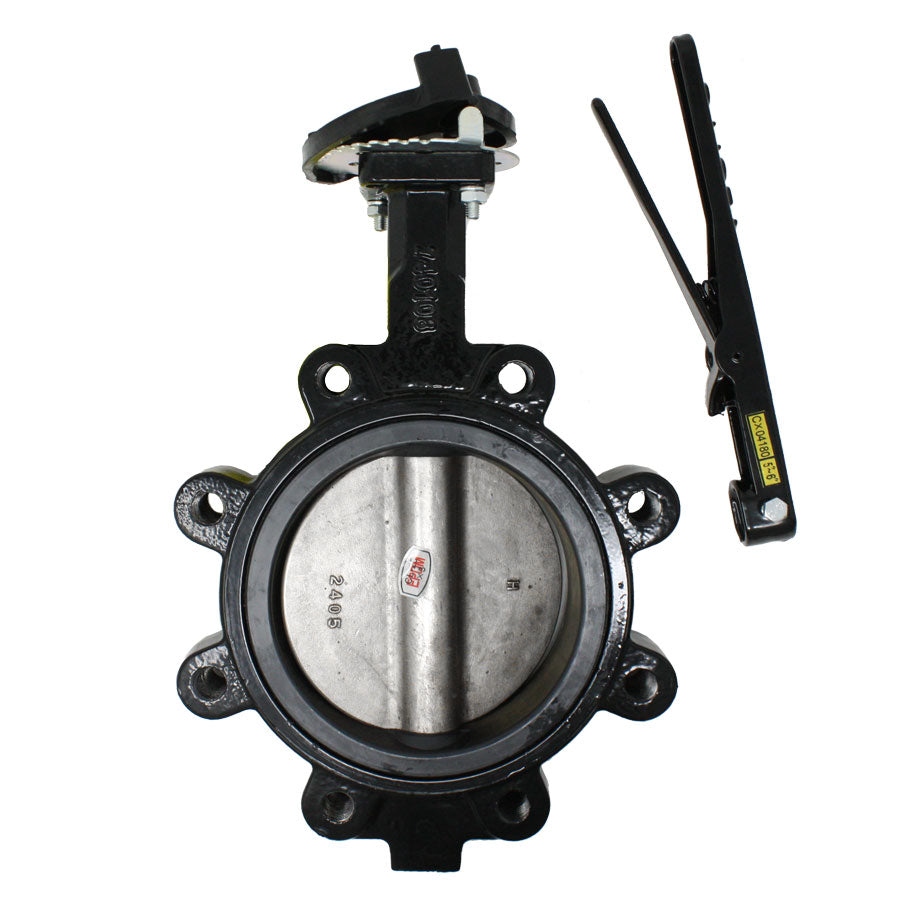

Apollo Valves ld14106de11a 6 Inch Lug Butterfly Valve

Product Description

The APOLLO VALVES ld14106de11a is a 6-inch resilient seated lug-style butterfly valve designed for demanding industrial and commercial fluid control applications. Built around a ductile iron body and ductile iron disc, this valve seats against an EPDM elastomer for reliable shutoff across a wide service range. It is rated to 200 psi and handles temperatures from -20 to 250 degrees F intermittent and 225 degrees F continuous. The 10-position lever handle actuator allows precise flow regulation, and the lug-style end configuration supports in-line installation between standard flanges. Licensed plumbers, pipefitters, and mechanical contractors are the typical installers for this class of valve.

The ld14106de11a belongs to the LD141 series from Apollo Conbraco, engineered as a companion lug-style butterfly valve for industrial, commercial, HVAC, and mechanical piping systems. Its EPDM seat makes it well-suited for water and compatible hydronic or process media in both new construction and retrofit service. The lug body pattern allows either end of the downstream piping to be removed independently without disturbing the upstream connection, which simplifies maintenance in congested mechanical rooms. Typical installations include chilled water, heating water, and general service piping in commercial and light industrial settings.

Key Features

• Ductile iron body and disc for durability in industrial and commercial service
• EPDM resilient seat rated for -20 to 250 degrees F intermittent and 225 degrees F continuous service
• 200 psi pressure rating suitable for most commercial HVAC and mechanical applications
• 10-position lever handle actuator for incremental flow control
• Lug-style end configuration allows independent line removal from either flange face
• 8.88 inches top to inlet center dimension for clearance planning in tight mechanical spaces

Compatibility

Designed for use in industrial, commercial, HVAC, and mechanical piping applications as part of the Apollo Conbraco LD141 series lug-style butterfly valve line. Consult system piping drawings and flange standards to confirm dimensional and pressure-class compatibility before installation.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified mechanical contractor in accordance with applicable codes such as the International Plumbing Code or relevant ASME piping standards. Depressurize and isolate the line and verify zero pressure before disassembling flanges or positioning the valve. Use appropriate flange gaskets and fastener torque procedures specified by the flange standard in use. Do not exceed the rated pressure or temperature limits of the valve or the EPDM seat.

Technical Specifications

• Nominal Size: 6 inches
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees F intermittent / 225 degrees F continuous
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Seat Material: EPDM
• End Style: Lug
• Actuator Type: 10-Position Lever Handle
• Top to Inlet Center: 8.88 inches
• Weight: 24.78 pounds
• Series: LD141
• Application: Industrial, Commercial, HVAC and Mechanical Applications

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: ld14106de11a
