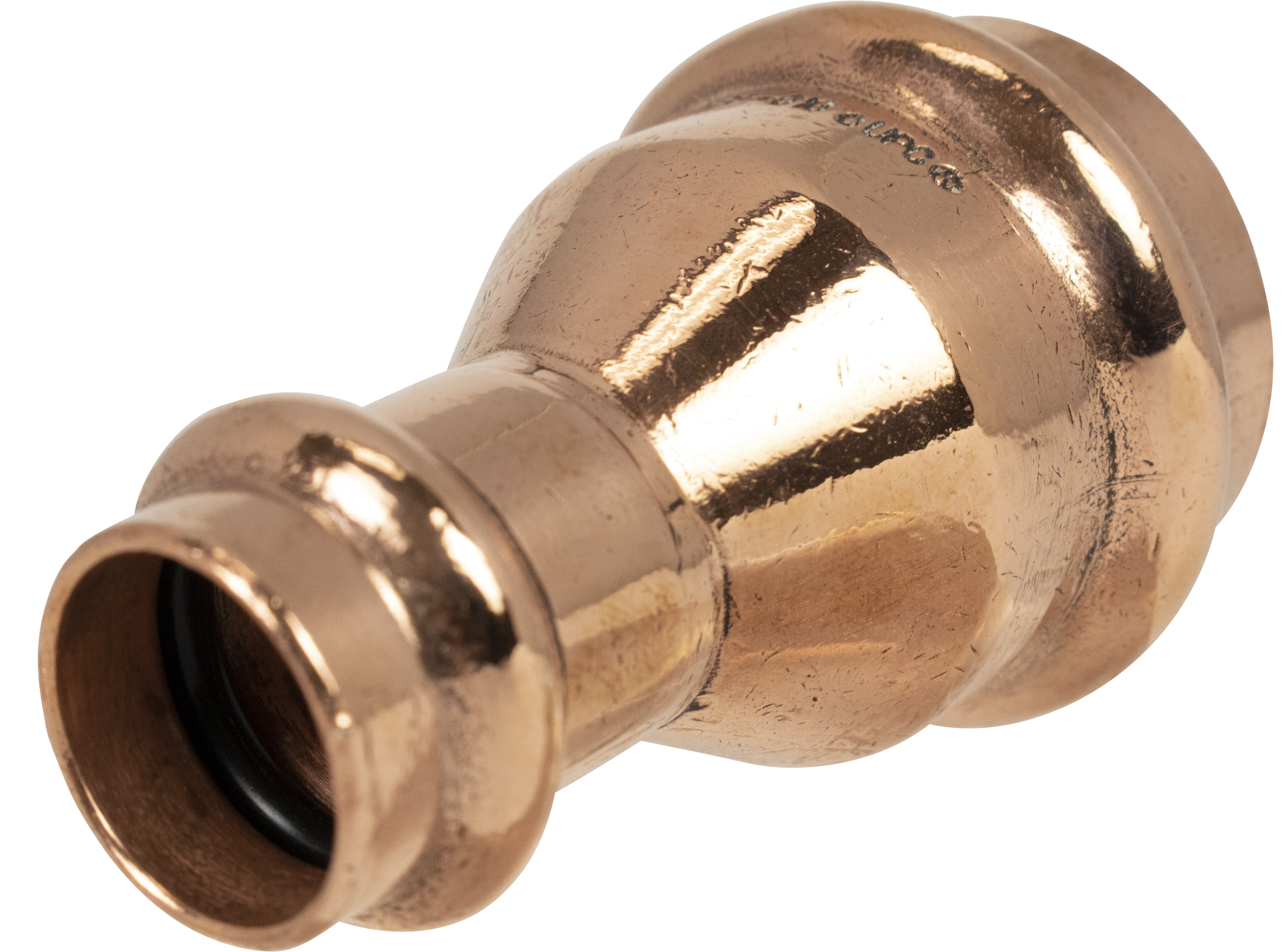

Apollo Valves COU112X12 Reducing Press Coupling Copper

Product Description

The APOLLO VALVES COU112X12 is an ApolloPress 801 series small-diameter reducing press coupling designed for copper press-fit piping systems. It connects a 1.5-inch press end to a 0.5-inch press end without soldering, using a factory-installed EPDM o-ring that forms a leak-tight seal when activated with a compatible press tool. The body is constructed from lead-free, dezincification-resistant copper, meeting ASTM material and manufacturing standards. This coupling is installed by licensed plumbers in residential and light commercial applications where flame-free joining is required or preferred.

This coupling is suited for domestic water distribution systems where a transition from 1.5-inch to 0.5-inch copper line is needed. The press-fit design eliminates open-flame soldering, making it appropriate for retrofits, tight spaces, and occupied structures where torch work presents a fire or code risk. The Leak Before Press feature allows the EPDM o-ring to weep if the joint is not fully pressed, giving the installer a visible indication of an incomplete connection before the system is put into service.

Key Features

• Lead-free, dezincification-resistant copper body meets ASTM material standards
• Reducing geometry: 1.5 inches x 0.5 inches press-by-press (PxP) connection
• Factory-installed EPDM o-ring for reliable, solderless sealing
• Leak Before Press technology provides visual confirmation of incomplete joints
• Flame-free installation reduces fire risk and eliminates torch permits in many jurisdictions

Compatibility

Designed as an OEM-style press fitting for use in copper press-fit piping systems accepting 1.5-inch and 0.5-inch press connections with a compatible press tool and jaw set.

Installation Notes

Installation requires a calibrated press tool fitted with the correct jaw size for each end of the coupling. Shut off and depressurize the water supply before cutting into the line. Ensure pipe ends are clean, deburred, and fully inserted to the tube stop before pressing. Verify each connection visually after pressing to confirm the o-ring indicator has not shown a pre-press leak condition.

Technical Specifications

• Connection Type: Press x Press (PxP)
• Inlet Size: 1.5 inches
• Outlet Size: 0.5 inches
• Body Material: Lead-free dezincification-resistant copper
• Seal Material: EPDM o-ring
• Construction Standard: ASTM
• Lead Free: Yes

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: COU112X12
