Apollo Valves 9310301 Ball Valve 1/2 in

Product Description

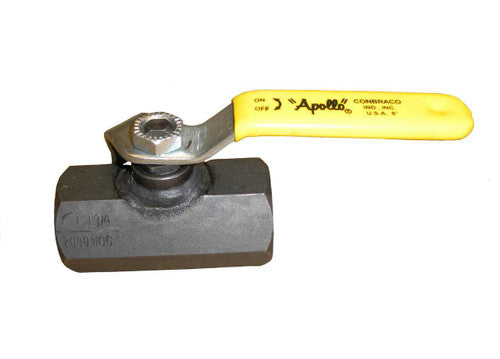

The APOLLO VALVES 9310301 is a uni-body ball valve from the 93-100 series with a 1/2 inch FNPT end style. Designed with a reduced port and lever handle actuator, it features a chrome-plated carbon steel ball and a carbon steel body. Suitable for gas and water applications.

• Uni-body barstock steel design
• Reinforced seat and seal
• Blow-out proof stem design

Product Highlights

This ball valve features a reinforced seat and seal, along with a blow-out proof stem design for enhanced safety and durability.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 9310301
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Carbon Steel
• Body Material: Carbon Steel
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.18 in
• Nominal Size: 1/2 In
• Port Type: Reduced
• Pressure Rating: 2000 psig CWP/150 psig SWP
• Series: 93-100
• Softgoods Material: MPTFE
• Top to Inlet Center: 1.63 in
• Trim Material: RPTFE/Zinc Plated Carbon Steel
• Type: Uni-Body
• Media: Gas/Water
• Orifice Size: 0.38 in
• Max. Pressure: 2000 CWP
• Temperature Range: -50F to 600F
• Handle Material: Steel
• Handle Type: Lever
• Stem: Blowout Proof
• Connection: Threaded
• Connection Size: 1/2"
• Thread: Female
• Suitable For: Air
