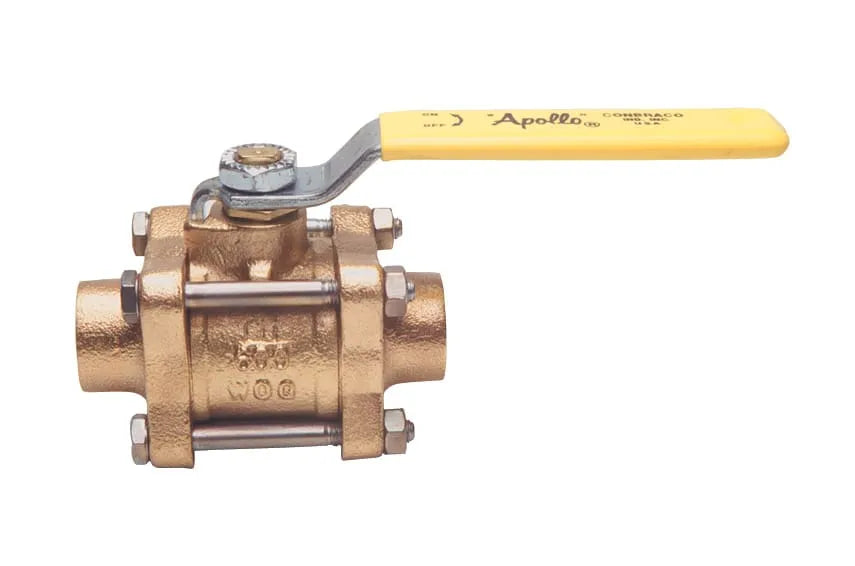

Apollo Valves 8220804 Ball Valve 2 inch

Product Description

The APOLLO VALVES 8220804 is an in-line serviceable valve designed for soft soldering or brazed installations. It features SAE Grade Body Bolts and RPTFE seals as standard. This 3-piece full port bronze ball valve has a 2-1/4 inch stem extension and a 2 inch size.

• Dezincification-resistant bronze body
• Blow-out proof stem
• Premium RPTFE seats and seal

Product Highlights

The APOLLO VALVES 8220804 ball valve is suitable for various applications with its full port design and durable construction.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 8220804
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 6.03 in
• Nominal Size: 2 In
• Port Type: Full Port
• Pressure Rating: 600 psi CWP
• Series: 82-200
• Softgoods Material: RPTFE
• Temperature Rating: 500 deg F
• Top to Inlet Center: 3.68 in
• Trim Material: Chrome Plated Brass Stem and RPTFE Seat
• Type: 3-Piece
• Item: Ball Valve
• Connection Type: Solder
• Housing Construction: 3-Piece
• Outer Pipe Diameter Connection 1: 53.98 mm
• Outer Pipe Diameter Connection 2: 53.98 mm
• Pipe Size: 2"
• Stem Size: 2 1 / 4 "
