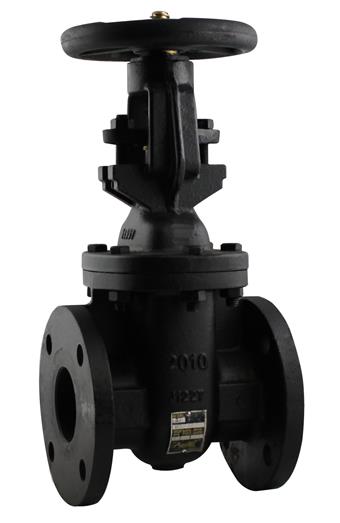

APOLLO VALVES 6GA109B1LFA Apollo Valves 6GA109B1LFA Cast Iron Flanged Gate Valve

Product Description

The Apollo Valves 6GA109B1LFA is a reliable cast iron flanged gate valve. It is suitable for plumbing, heating, and building service piping systems. This valve includes a non-rising stem and a bolted bonnet for durability. The bronze mounted seat rings ensure efficient flow control. It meets MSS SP-70 standards and is NSF certified lead-free. The valve is compatible with ANSI 125# and 150# flanges.

• Non-rising stem design
• Flanged connections for ease of installation
• Constructed from durable cast iron

Product Highlights

Ideal for various plumbing applications, the Apollo Valves 6GA109B1LFA provides dependable operation and compliance with industry standards.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 6GA109B1LFA

Technical Specifications

• Valve Type: Gate Valve
• Material: Cast Iron
• Connection Type: Flange
• End Connection 1: Flanged
• End Connection 2: Flanged
• Valve Size: 2.5 inches
• Pressure Class: 125#
• Valve Stem: Non-rising
• Valve Port Opening: Full Port
• Valve Bonnet Type: Bolted
• Valve Seat Material: Bronze
• Valve Operator: Wheel Handle
• Lead Law Compliant: Yes
• NSF Certified: Yes
• ANSI: ANSI 372, ANSI 61, ANSI Class 125
• ASME: ASME B16.10
• ASTM: ASTM A-126 Class B, ASTM A-307 Class B, ASTM A-536 65-45-12, ASTM B-16, ASTM B-62
• MSS: MSS SP-70
