Apollo Valves 670750823206 Ball Valve 1/4 inch

Product Description

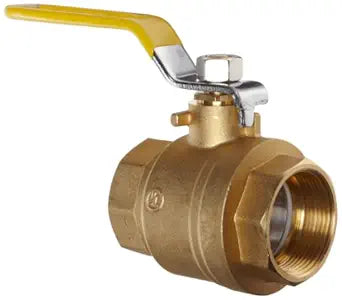

The APOLLO VALVES 670750823206 is a brass ball valve with female National Pipe Taper (NPT) threaded connections on both ends. It is made of brass for higher corrosion resistance than steel and has a steel lever handle with corrosion resistant plating and a vinyl sleeve for manual on/off control. The valve is inline for connecting two pipes going in the same direction.

• Made from brass for higher corrosion resistance than steel
• Steel lever handle with corrosion resistant plating and a vinyl sleeve for manual on/off control
• Full port flow for higher operating efficiency than standard port

Product Highlights

This ball valve is suitable for use with water lines, processing plants, and agricultural applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750823206

Technical Specifications

• Material: Brass
• Inlet Connection Type: threaded
• Outlet Connection Type: FNPT
• Maximum Operating Pressure: 600 Pound per Square Inch
• Number of Ports: 2
• Specification Met: NSF
• Unit Count: 1.0 Count
• Connector Type: Threaded
• Valve Type: Ball Valve
• Size: 1/4 IN
• Brand: APOLLO
• Type: 2-Piece, Full-Port
• Series/Model: Series 94A
• Pressure Rating: 600 PSI (CWP)
• Temperature Rating: 0 - 400 DEG F
• Opening Size: 0.395 IN
• Body Material: Forged Brass
• Operator Type: Lever Handle
• Handle Material: Corrosion Resistant Steel
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: PTFE Stem
• Seat Material: PTFE
• Finish/Color: Chrome Plated Ball And Stem
• Industry Standards: MSS-SP-110 Compliant, UL Listed, CSA Certified, FM Approved
• Lead Free: No
• Additional Specifications: Flow Co-Efficient (Cv): 6
