Apollo Valves 670750706615 Ball Valve 7714804

Product Description

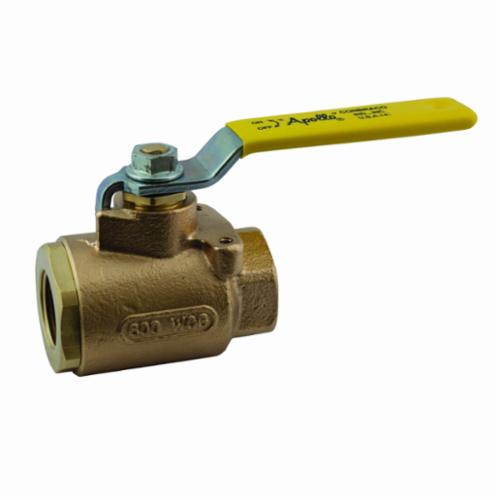

The APOLLO VALVES 670750706615 is a 2-piece ball valve from the 77-140 series. This valve features a bronze body, a stainless steel ball, and a 316 stainless steel stem trim. It is designed with a full port and a lever handle actuator. Suitable for applications requiring durable and reliable flow control.

• 2 in nominal size with FNPT end style
• Rated to 600 psig CWP and 500 deg F
• Features RPTFE seat, PTFE seal, and RPTFE stem packing

Product Highlights

Durable bronze body ball valve with stainless steel components, ideal for industrial applications requiring precise flow control.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750706615
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Stainless Steel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 5.37 in
• Nominal Size: 2 in
• Port Type: Full
• Pressure Rating: 600 psig CWP
• Series: 77-140
• Softgoods Material: RPTFE Seat/PTFE Seal/RPTFE Stem Packing
• Temperature Rating: 500 deg F
• Top to Inlet Center: 3.71 in
• Trim Material: 316 Stainless Steel Stem
• Type: 2-Piece
