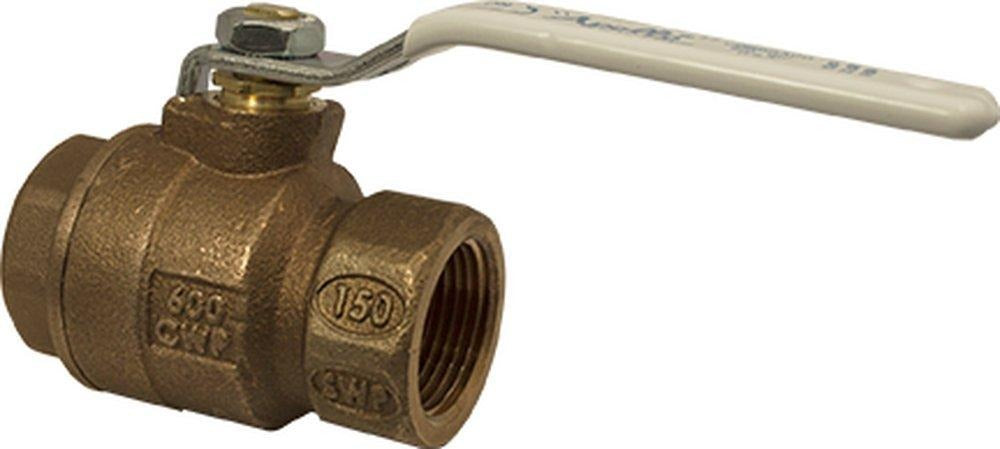

Apollo Valves 670750611322 Bronze Full Port Ball Valve 1 in

Product Description

The APOLLO VALVES 670750611322 is a 1-inch full port bronze ball valve in the 77CLF-A Series, designed for shut-off and flow control in potable water systems. Built from cast bronze (ASTM B584, C89836) with a 316 stainless steel disc and RPTFE seats, this valve meets lead-free requirements under NSF 61 and NSF 372. It carries a 600-pound pressure rating and handles temperatures from -20 to 450 degrees F. The blowout-proof stem and lever handle make it a dependable choice for residential and commercial plumbing installations. Each valve is manufactured and 100 percent factory tested in the USA.

This valve is suited for potable water supply lines, HVAC hydronic systems, and general plumbing distribution where a full port, NPT-threaded isolation valve is required. The full port design minimizes pressure drop across the valve, which is important in systems with flow-sensitive equipment downstream. Both end connections are NPT threaded, making installation straightforward in standard pipe configurations. The white lever handle and blue lead-free hang tag allow quick field identification during inspection or service calls.

Key Features

• Lead-free construction certified to NSF 61 and NSF 372 for potable water service
• Full port ball for minimal flow restriction and low pressure drop
• Blowout-proof stem design for safe operation under pressure
• RPTFE seats and seals for reliable shutoff and long service life
• 100 percent factory tested in the USA
• IAPMO listed and cUPC certified

Compatibility

Designed as an OEM-style replacement or new installation valve for 1-inch NPT plumbing systems requiring lead-free, full port ball valve isolation, including potable water applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code. Shut off the water supply and relieve system pressure before installing or servicing the valve. NPT threads should be sealed with an appropriate thread sealant or tape rated for potable water service. Do not overtighten the valve body during installation, as cast bronze fittings can crack under excessive torque.
