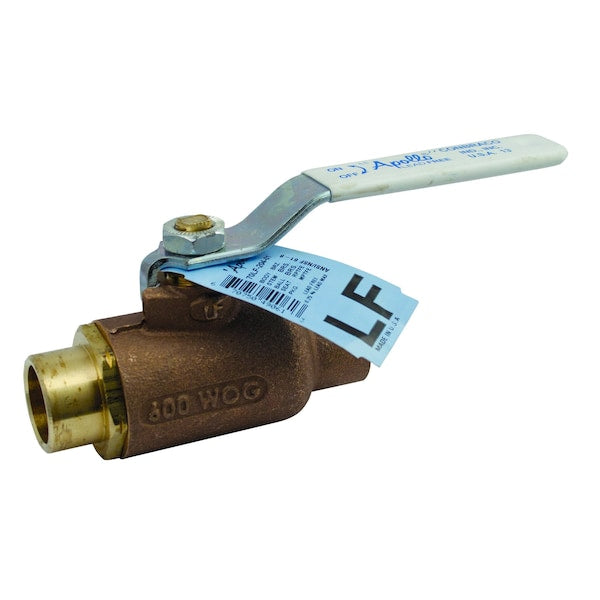

Apollo Valves 670750512643 Sweat Ball Valve Inline 1-1/4 in 70 Series

Product Description

Apollo Valves 670750512643 is a manual two-way sweat ball valve for air and water service with a two-piece inline body, chrome-plated brass ball, PTFE seats and RPTFE seals. The valve features a blowout-resistant brass stem and a lever handle with PVC grip, and is rated to 600 PSI CWP with steam rating of 150 PSI WSP and an operating temperature range listed from -20°F to 450°F (maximum operating 350°F).

• Two-piece inline bronze body with chrome-plated brass ball and PTFE seats; sweat x sweat connections for 1-1/4 in pipe.
• Pressure and temperature ratings: 600 PSI CWP operating, 150 PSI WSP steam; operating temperature range -20°F to 450°F (maximum listed 350°F).
• Blowout-resistant brass stem, RPTFE seals, lever handle with PVC and zinc-plated steel core; nominal valve size 1 1/4 in.

Product Highlights

Manual two-way 1-1/4 in sweat inline ball valve, 600 PSI CWP, PTFE seats, blowout-resistant stem, NSF 61 and ISO 9001 compliant.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750512643
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 70LF-206-01
• UPC: 670750512643
• Brand: Apollo Valves
• Valve Series: 70
• Item: Ball valve
• Type: Two piece
• Body Material: Bronze
• Body Style: Inline
• Nominal Valve Size: 1 1/4 in
• Pipe Size: 1 1/4 in
• Connection Type: Sweat x Sweat
• Connection Size - Side 1: 1 1/4 in
• Connection Size - Side 2: 1 1/4 in
• Overall Length: 4.62 in
• Ball Material: Chrome plated brass
• Ball Port Style: Standard port
• Valve Ways: 2-way
• Valve Structure: Two-piece
• For Media: Air, Water
• Handle Material: PVC, zinc-plated steel
• Handle Type: Lever
• Handle - Locking: Non-locking
• Handle Height: 2.62 in
• Handle Length: 5.4 in
• Stem Material: Brass
• Stem Type: Blowout resistant
• Seat Material: PTFE
• Seal Material: RPTFE
• Max Pressure (Operating): 600 PSI CWP
• Maximum Pressure - Steam: 150 PSI WSP
• Temp. Range: -20 °F to 450 °F (operating maximum listed as 350 °F)
• Vacuum Service Rating: 29 in Hg
• NSF Certifications: NSF 61
• Standards/Compliance: ISO 9001; Build America/Buy America Act (BABA); Buy American Act (BAA); CRN; Material Quality C89836 (Lead-Free)
• Country of Origin: United States
