APOLLO VALVES 61Y204T1 Apollo 163T 3/4 inch NPT Bronze Swing Check Valve

Product Description

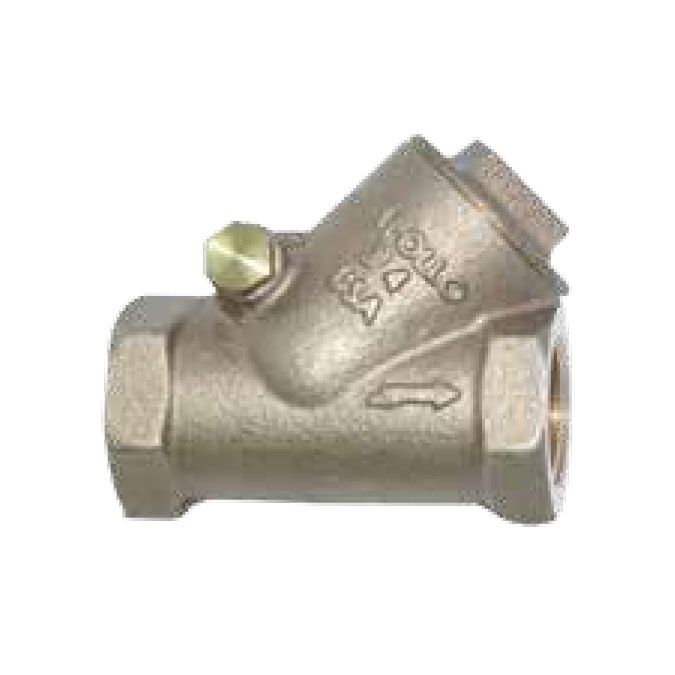

The Apollo Valves 61Y204T1, part of the 163T Series, is a bronze swing check valve designed for efficient flow control. With its 3/4 inch NPT connection, this valve is suitable for a wide range of applications from residential to commercial settings.

• Robust bronze body ensuring durability and corrosion resistance.
• Operates effectively within a temperature range of -20 degrees Fahrenheit to 406 degrees Fahrenheit.
• Versatile installation options in both horizontal and vertical lines with upward flow.

Product Highlights

Optimal for steam applications, this valve supports a maximum pressure of 125 psi at water steam pressure (WSP) and features a PTFE seat disc which enhances its performance under varying conditions. Not suitable for pulsation or repetitive vibration applications.

Product Information

Standard Information

• Brand: Apollo Valves

Technical Specifications

• MPN: 61Y204T1
• Model: 163T34
• Valve Size: 3/4 inch
• Val miseryConnection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Steam
• Max Pressure: 125 psi WSP
• Weight: 1.00
