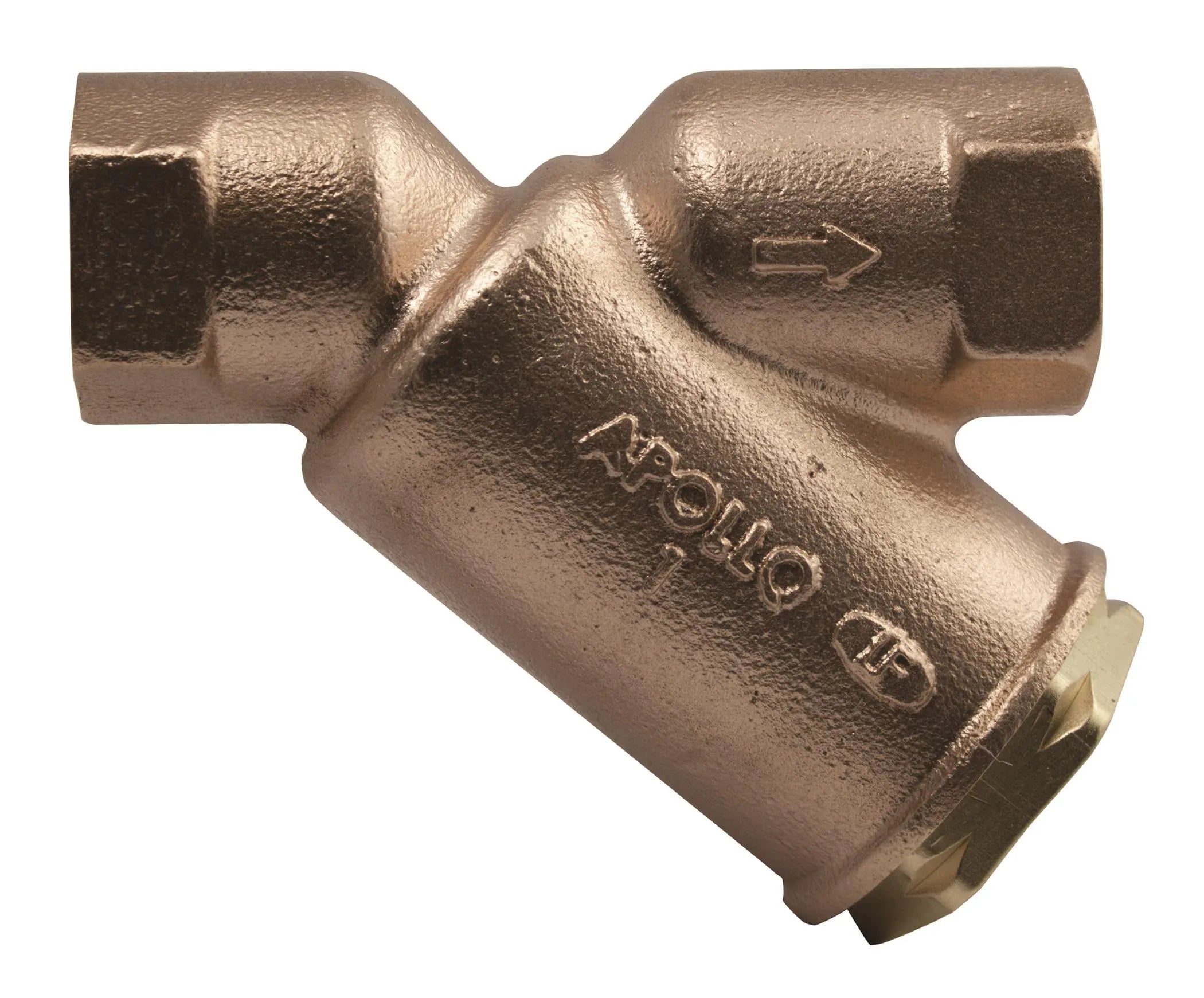

Apollo Valves 59LF308P2 Wye Strainer 2 Inch

Product Description

The APOLLO VALVES 59LF308P2 is a heavy pattern wye strainer designed with large area screens. It protects potable water piping systems and process equipment from unwanted foreign particles with minimum pressure loss. It features a self-aligning screen design and is 100% factory pressure tested. This strainer is made of lead-free bronze and assembled in the USA.

• Protects piping systems from foreign particles
• Features self-aligning screen design
• 100% factory pressure tested

Product Highlights

The APOLLO VALVES 59LF308P2 wye strainer protects piping systems and process equipment from unwanted particles.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF308P2
• Country of Origin: US

Technical Specifications

• Customer Part No: 59LF308P2
• Item No: 59LF-308-P2
• Product Type: Wye Strainer
• Category1: Plumbing
• Category2: Strainers
• Category3: Y Strainers
• Brand: Apollo Valves
• Unit Length (in.): 7.75 in.
• Unit Width (in.): 4.00 in.
• Unit Height (in.): 6.25 in.
• Unit Weight (lbs.): 6.27 lbs.
• Manufacturer Name: Aalberts Integrated Piping Systems
• Size: 2"
• Max operating pressure liquid: 400 psi
• Materials: bronze (ASTM B584)
• Connection type: solder, solder
• Shape: Y-piece 45 degrees
• ETIM class: EC010151 Pipeline strainer
• Housing material: Bronze
• Surface protection: Untreated
• Nominal diameter: DN 50
• Connection: Soldered sleeve
• Max. operating pressure: 27.58bar
• Max. operating pressure (imperial): 400psi
• Length: 196.85mm
• Length (imperial): 7.75"
• Height: 158.75mm
• Height (imperial): 6.25"
• KIWA certified: No
• Gastec QA mark: No
• Gastec QA - AR 214 (H2): No
• Item: Y Strainer
• Color: Yellow
• Dimensions: 7 3/4" x 4" x 6 1/4"
• Material: Bronze
• Series: 59 Series Strainers
• Blow-Off Size: 1-1/4 in NPT
• Body Material: Cast Bronze
• Domestic/Import: Domestic
• Nominal Size: 2 In
• Overall Length: 7-1/4 in
• Softgoods Material: PTFE
• Type: Heavy Pattern
