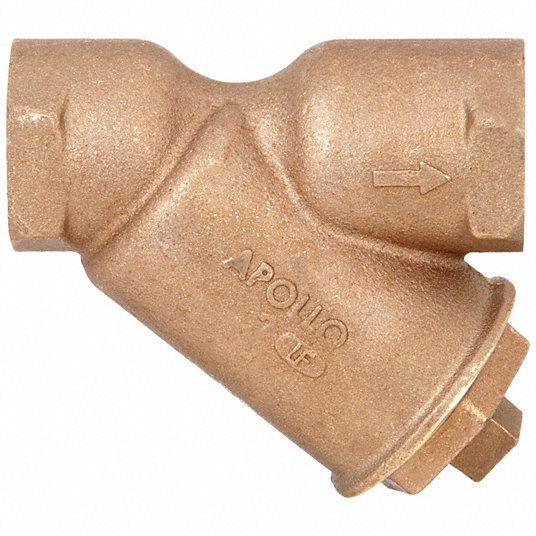

Apollo Valves 59LF007P2 Wye Strainer with Tapped Cap with Plug 1-1/2 inches

Product Description

The Apollo Lead Free YB-LF (59LF) Series Heavy Pattern Strainers are designed with large area screens to protect piping systems and process equipment from unwanted foreign particles with minimum pressure loss. These bronze Y-strainers protect pumps, control valves, regulators, and other process equipment from contaminants found in water, oil, gas, and steam applications.

• Lead Free*
• 100% Factory Pressure Tested
• Removable Self-Aligning Screen Design

Product Highlights

The Apollo Y strainer resists corrosion from saltwater and has high heat and electrical conductivity. It is ARRA Compliant and 100% Cast, Machined and Assembled in the USA.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF007P2
• Country of Origin: United States

Technical Specifications

• DN1: 1-1/2"
• DN2: 1-1/2"
• article number with gtin: 59LF007P2 (00670750780318)
• product number with gtin: 59LF007P2 (00670750780318)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• size: 1-1/2"
• materials: bronze (ASTM B584)
• finishing: none
• shape: Y-piece 45 degrees
• connection type: FPT - female thread conical (NPT), FPT - female thread conical (NPT)
• max operating pressure liquid: 400 psi
• ETIM class: EC010151 Pipeline strainer
• country of origin: United States
• brand: Apollo
• series: 59 Series Strainers
• product type: 59LF00XP2
• unsps: 40142505
• etim-class: EC010151 Pipeline strainer
• Housing material: Bronze
• Surface protection: Untreated
• Nominal diameter: DN 40
• Connection: Internal thread conical (NPT)
• Max. operating pressure: 27.58bar
• Max. operating pressure (imperial): 400psi
• Strainer Type: Mesh
• Micron Rating: 840 micron
• Mesh Size: 16 mesh
• Seal Material: PTFE
• Screen Material: 304 Stainless Steel
• Pipe Size: 1-1/2 in
• Port 1 Connection Type: NPT
• Port 1 Connection Size: 1-1/2 in
• Port 2 Connection Type: NPT
• Port 1 Gender: Female
• Port 2 Gender: Female
• Length: 5-3/4 in
• Height: 5 in
• Class: 400 CWP-125 SWP
• Blow Off Port: 1 in
• Port 2 Connection Size: 1-1/2 in
• Port 3 Connection Size: 1 in
• Port 3 Connection Type: NPT
• Port 3 Gender: Female
• Max. Operating Temperature: 353 Degrees F
• Screen area: 0.03 sq in
• Compatible Media: Water
• Includes Screen: Screen Included
• Standards: ARRA Certified; CRN 0E8959.5; NSF/ANSI 372
• MPN: 59LF007P2
• GTIN: 0670750780318
• UPC: 0670750780318
• Model: 59LF007P2
• Width: 5.75
• Maximum Pressure: CWP: 400 psi, SWP: 125 psi
• Gasket Material: PTFE
• Microns: 840
