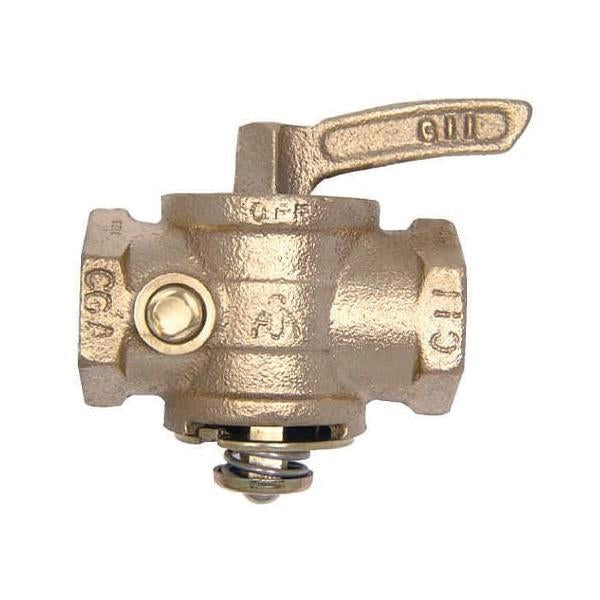

APOLLO VALVES 50-203-01 Main Control Valve 1/2 in FNPT

Product Description

The APOLLO VALVES 50-203-01 is a main control valve designed for various applications. It features a nominal pipe size of one half inch with a FNPT connection. Its construction includes a bronze body and trim made of bronze and stainless steel.

• Factory tested at ten psig
• Capacities up to 7.8 MBtu/hr
• Drilled bosses on both sides for easy installation

Product Highlights

This valve is suitable for controlling flow in different systems, providing reliable performance in both residential and commercial settings.

Product Information

Standard Information

• Body Material: Bronze
• Connection Type: FNPT

Technical Specifications

• Inlet to Outlet Length: 2.5 inches
• Nominal Pipe Size: 0.5 inches
• Pressure Rating: 0.5 psig
• Series: 50 Series
• Temperature Rating: 32 to 125 degrees F
• Top to Inlet Center: 1.44 inches
• Trim Material: Bronze/Stainless Steel
• MPN: 50-203-01
