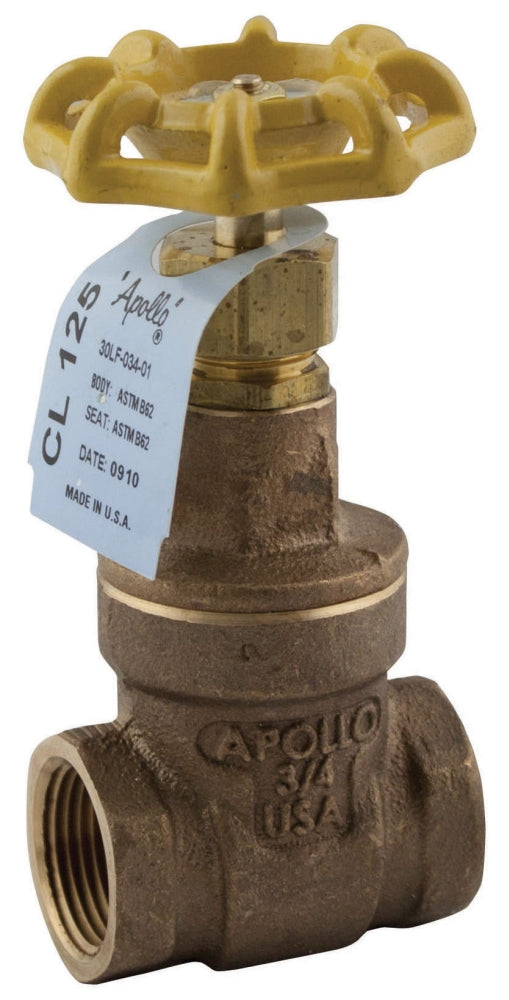

Apollo Valves 30LF03101 1/4 NPT x NPT Gate Valve 125 PSI SWP 200 PSI CWP

Product Description

The Apollo Valves 30LF03101 is a lead-free gate valve designed for potable water service. It is made in the USA and built from high-quality materials, ensuring durability and reliability in plumbing systems.

• Lead-free construction
• Full port design for maximum flow
• Threaded NPT connections

Product Highlights

This gate valve features a non-rising stem and is equipped with a handwheel for easy operation. It is designed for commercial applications and complies with several industry standards.

Product Information

Standard Information

• Manufacturer: Conbraco
• Model: 30LF03101

Technical Specifications

• Nominal Size: 1/4 Inch
• Pressure Rating: 125 PSI SWP, 200 PSI CWP
• Temperature Rating: -20 to 406 Deg F
• Body Material: ASTM B584 C89836 Bronze
• Stem Material: ASTM B21 UNS C46400 Brass
• Seat Material: ASTM B21 UNS C46400 Brass
• Seal Material: Grafoil
• Wedge Material: ASTM B584 C89836 Bronze
• End Connection: Threaded x Threaded
• End To End Distance: 1.76 Inch
• Inclusions/Features: Adjustable Graphite Stem Packing
• Application: Commercial, Potable Water
• Applicable Standard: CSA B51, NSF/ANSI 61/372, MSS SP- 80/139, ISO, ASME B1.20.1
