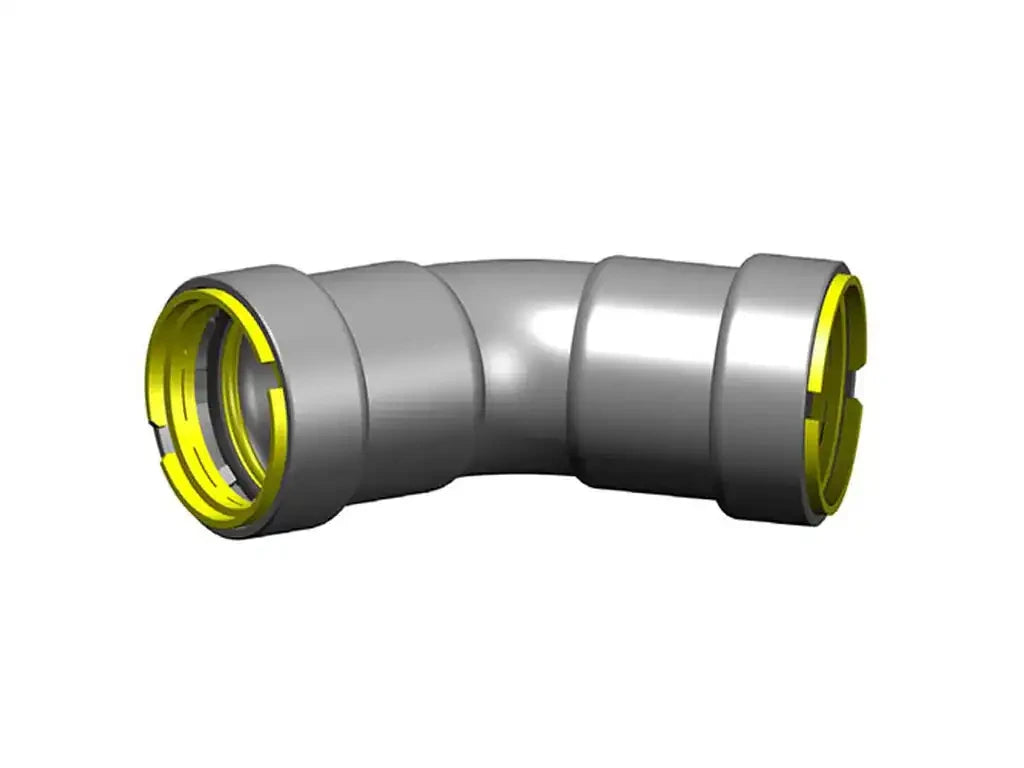

Apollo Powerpress 7481573 45 Deg Gas Press Elbow 1-1/2 in

Product Description

The APOLLO POWERPRESS 7481573 is a 45-degree carbon steel press elbow designed for directional transitions in natural gas and propane fuel gas piping systems. Built to ASTM F3226 and ANSI LC-4 standards, it uses press-connect technology to deliver a fast, flame-free mechanical joint without soldering or open flame. The 1-1/2 inch Press x Press end configuration comes with factory-installed sealing elements rated for gas service. The 45-degree angle allows smooth directional change with minimal pressure drop and reduced mechanical stress on the surrounding piping. Licensed plumbers and gas fitters are the primary installers of this fitting in residential, commercial, and industrial fuel gas distribution layouts.

This elbow is suited for use in natural gas and propane distribution piping where press-connect systems are specified. It fits directly into Press x Press configurations at 1-1/2 inch pipe size. Typical installation scenarios include branch routing, equipment connections, and directional offsets in concealed or exposed gas piping runs. The fitting is appropriate for residential home runs, light commercial gas systems, and industrial fuel gas networks where ASTM F3226 and ANSI LC-4 compliant fittings are required.

Key Features

• 45-degree bend for smooth directional transitions with minimal pressure drop
• Carbon steel construction for durability in fuel gas service
• Press x Press end style for flame-free, tool-actuated installation
• Factory-installed sealing elements rated for natural gas and propane applications
• Manufactured to ASTM F3226 and ANSI LC-4 performance standards
• 1-1/2 inch nominal size on both sides for straightforward same-size connections

Compatibility

Designed as an OEM-style press-connect fitting for 1-1/2 inch carbon steel gas piping systems where ASTM F3226 and ANSI LC-4 compliant Press x Press fittings are specified. Compatible press tools must be appropriate for gas-rated press fittings with factory-installed sealing elements.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes, IFGC requirements, and the tool manufacturer guidelines for press-connect gas fittings. Shut off and depressurize the gas supply line completely before cutting into or joining existing piping. Use only press tools and jaws rated for gas press fittings to ensure the sealing element seats correctly. Do not use open flame, solvents, or thread sealants on the press ends.
