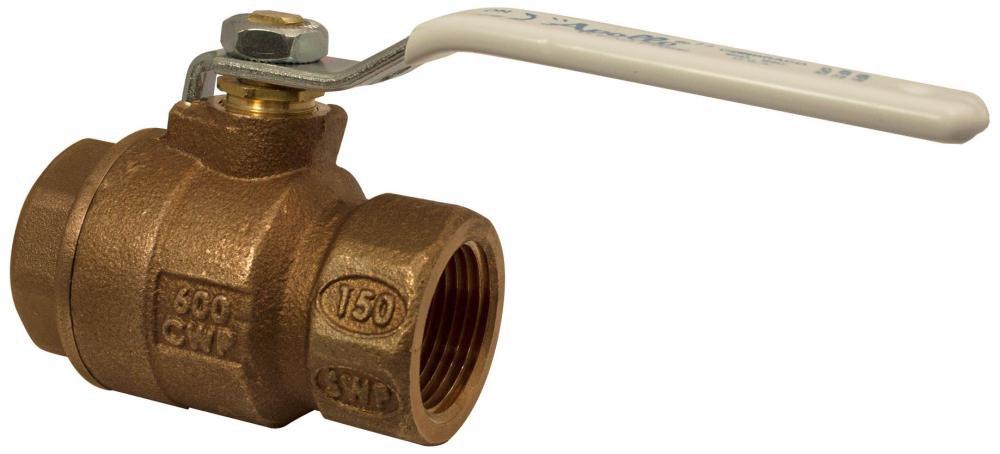

Apollo 77CLF14401A Bronze Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 77CLF14401A is a bronze ball valve designed for various applications. This valve features a three-quarter inch NPT connection and is rated for a maximum pressure of six hundred pounds per square inch. It is made of lead-free DZR bronze for safe use in water delivery systems.

• Lead-free construction for safe water handling.
• Full port design allows for maximum flow.
• Easy identification with white handle and blue tag.

Product Highlights

Engineered for commercial use, this valve provides reliable performance in a simple design.

Product Information

Standard Information

• Manufacturer: Apollo Valves
• Part Number: 77CLF14401A

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 3/4 in
• Connection Type: NPT
• Type: 2-Piece, Full-Port
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Temperature Rating: 450 deg F
• Seal Material: RPTFE
• Stem Material: 316 Stainless Steel
• Standards: MSS SP-11, ANSI/CAN/NSF 61 and 372
• Applications: For commercial applications
