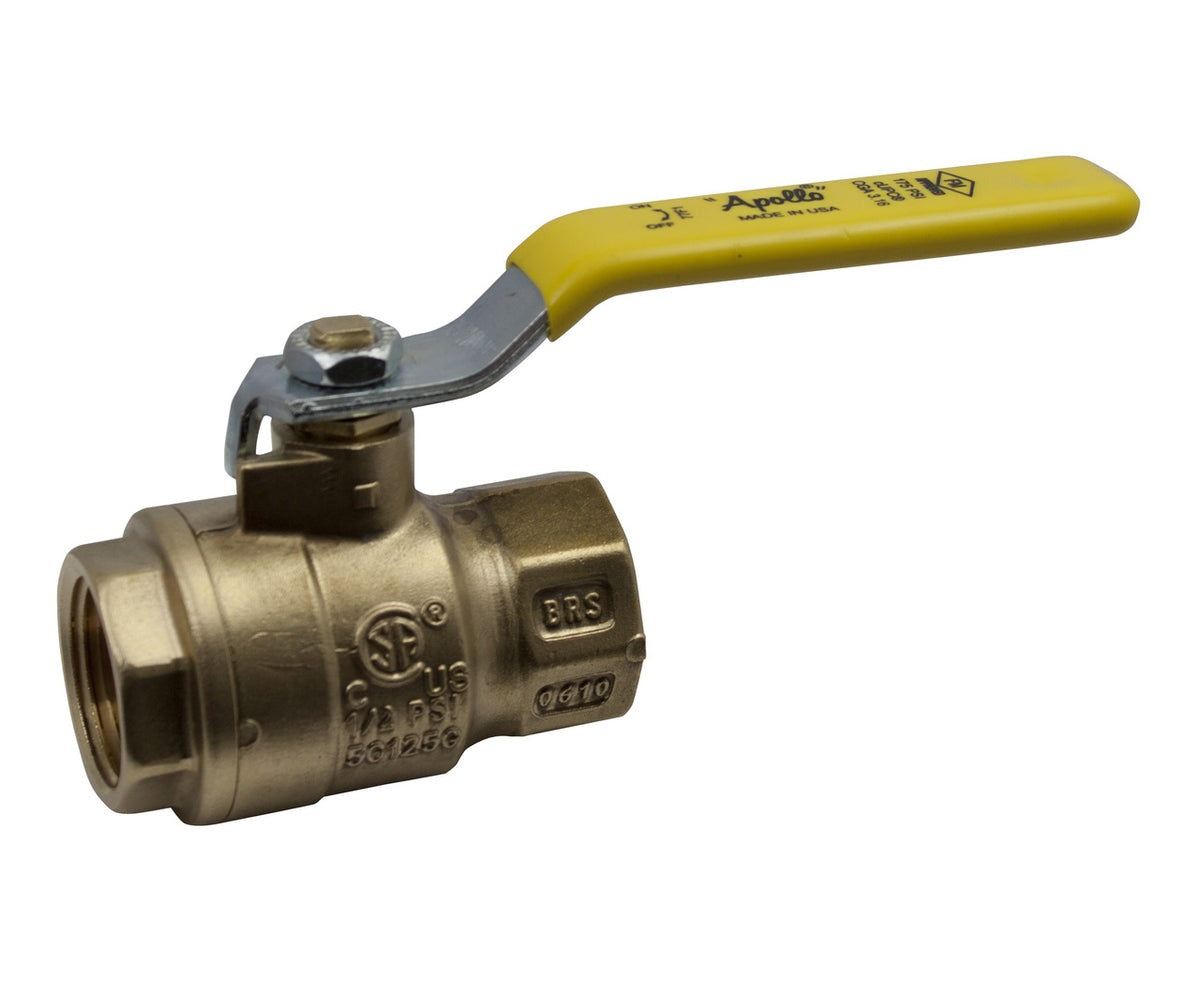

Apollo 671000000000 Ball Valve 1/2 in Threaded Brass Full Port

Product Description

The Apollo 671000000000 is a full-port ball valve designed for reliable shutoff and flow control in plumbing, HVAC, and industrial piping systems. The body is brass forged, providing strength and corrosion resistance in demanding service environments. The valve features a stainless steel ball and stem for durability and long cycle life, along with RPTFE seats and packing to maintain a tight seal across a wide temperature range. Rated at 600 CWP (cold working pressure), this 1/2-inch valve is suited for moderate- to high-pressure service in commercial and residential applications. It is installed by licensed plumbers and HVAC technicians.

This valve is intended for 1/2-inch pipe installations using threaded end connections. It is commonly used in water supply, hydronic heating, chilled water, compressed air, and general-purpose fluid systems where a full-bore, low-restriction shutoff is required. The full-port design minimizes pressure drop across the valve, making it well-suited for systems where flow efficiency matters. It fits into both new construction and retrofit piping scenarios where a threaded connection is specified.

Key Features

• Full-port design minimizes pressure drop and maintains full pipe bore flow
• Brass forged body offers superior strength compared to cast alternatives
• Stainless steel ball and stem resist corrosion and extend service life
• RPTFE seats and packing provide a reliable, long-lasting seal
• 600 CWP rating suitable for moderate- to high-pressure piping systems
• Threaded end connections for straightforward installation in standard pipe systems

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1/2-inch threaded pipe systems in residential and commercial plumbing, HVAC, and general-purpose fluid piping applications.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with applicable local codes and ASME or IPC standards. Shut off system pressure and drain the line before removal or installation of the valve. Use appropriate pipe thread sealant or tape on threaded connections and avoid over-tightening, which can damage the valve body or seat. Verify system pressure and media compatibility before returning the system to service.

Technical Specifications

• Pipe Size: 1/2 inches
• End Connection: Threaded
• Port: Full Port
• Pressure Rating: 600 CWP
• Body Material: Brass Forged
• Ball and Stem Material: Stainless Steel
• Seat and Packing Material: RPTFE

Standard Information

• Brand: Apollo
• Manufacturer Part Number: 671000000000
