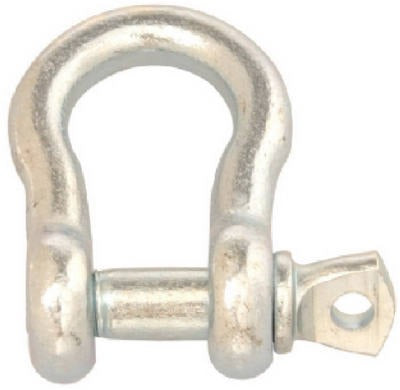

Apex Tools Group Llc T9600535 Screw Pin Anchor Shackle

Product Description

The APEX TOOLS GROUP LLC T9600535 is a 5/16-inch zinc-plated screw pin anchor shackle built for rigging, lifting, and load-securing applications. It carries a working load limit (WLL) of 700 pounds and is manufactured to a 5-to-1 design factor, meaning the shackle is rated to withstand ultimate loads five times the stated WLL before failure. The screw pin design allows for quick connection and disconnection without tools. The zinc plating provides a corrosion-resistant finish suited for both indoor and outdoor use. This package contains 10 shackles, each UPC tagged for inventory tracking.

Screw pin anchor shackles are standard hardware in rigging, construction, marine, agricultural, and general industrial settings. The anchor (bow) body style accommodates multi-leg sling configurations and in-line pulls. Typical installers include riggers, ironworkers, and maintenance professionals who need a reliable, removable connection point between wire rope, chain, synthetic slings, and load attachment points. The 5/16-inch pin size fits applications where compact geometry and moderate load capacity are required.

Key Features

• Working load limit (WLL) of 700 pounds for reliable load control within rated capacity
• 5-to-1 design factor provides a defined safety margin over the stated WLL
• Screw pin closure allows tool-free connection and removal in the field
• Zinc-plated finish resists corrosion in outdoor and light-moisture environments
• Anchor (bow) body style supports multi-leg and angular rigging configurations
• Sold in a pack of 10 UPC-tagged units for easy inventory management

Compatibility

Designed as a standard 5/16-inch screw pin anchor shackle compatible with wire rope, chain, and synthetic sling rigging assemblies rated within the 700-pound WLL of this shackle.

Installation Notes

Shackle installation and rigging work should be performed by qualified riggers familiar with applicable ASME B30 rigging standards and OSHA lifting regulations. Always verify that the load does not exceed the stated WLL of 700 pounds and that all connected components are rated to an equal or greater capacity. Thread the screw pin fully and back it off no more than one full turn before mousing or securing, per standard rigging practice. Never side-load a screw pin shackle beyond the angular limits specified in the applicable rigging standard.
