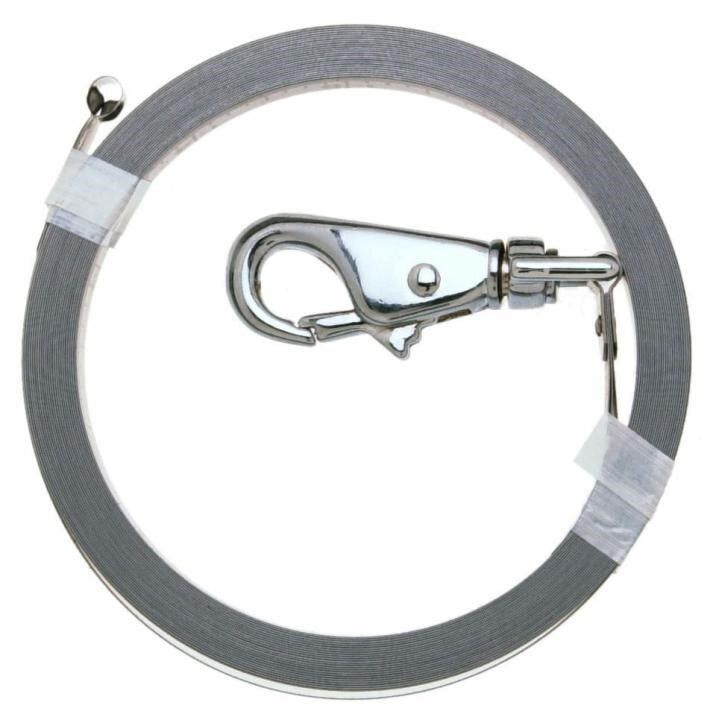

Apex OCN1293SMEF5N Replacement Tape Measure Blade 50 Ft

Product Description

The APEX OCN1293SMEF5N is a replacement tape blade designed for Atlas Chrome Clad and Nubian Double Duty tape measures. The blade runs 50 feet long and 0.5 inches wide with a D3 blade style profile. It is a direct swap for worn or damaged blades in compatible Crescent Lufkin tape measure housings. Measuring technicians, contractors, and trade professionals who rely on Crescent Lufkin Atlas-series tapes for layout and field measurement work will find this a straightforward service part to keep tools running without replacing the full unit.

This replacement blade fits residential and commercial job site applications where Crescent Lufkin Atlas Chrome Clad or Nubian Double Duty tape measures are in regular use. It is suited for any trade that depends on accurate long-run measurements: framing, rough-in plumbing, electrical conduit layout, and general construction. The blade assembly fits into the existing Atlas-family tape housing, restoring full 50-foot measuring capability without purchasing a new tool.

Key Features

• 50-foot blade length for long-run field measurements
• D3 blade style for compatibility with Atlas Chrome Clad and Nubian Double Duty housings
• 0.5-inch blade width for standard tape channel fitment
• Sold individually as a direct service replacement blade
• Compact housing footprint: 5.2 inches overall length, 5 inches width, 1.2 inches height

Compatibility

Designed as a replacement blade for Crescent Lufkin Atlas Chrome Clad and Nubian Double Duty tape measure housings requiring a D3-style, 50-foot, 0.5-inch-wide blade.

Installation Notes

Blade replacement on tape measure housings is typically performed by hand with basic hand tools. Disengage the spring mechanism and remove tension from the existing blade before extraction to avoid snap-back injury. Follow the tape housing manufacturer's disassembly sequence when reloading the new blade to ensure proper coil seating and hook alignment.

Technical Specifications

• Blade Length: 50 feet
• Blade Width: 0.5 inches
• Blade Style: D3
• Overall Length: 5.2 inches
• Overall Width: 5 inches
• Overall Height: 1.2 inches
• Weight: 1.2 pounds
• Sold As: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: OCN1293SMEF5N
