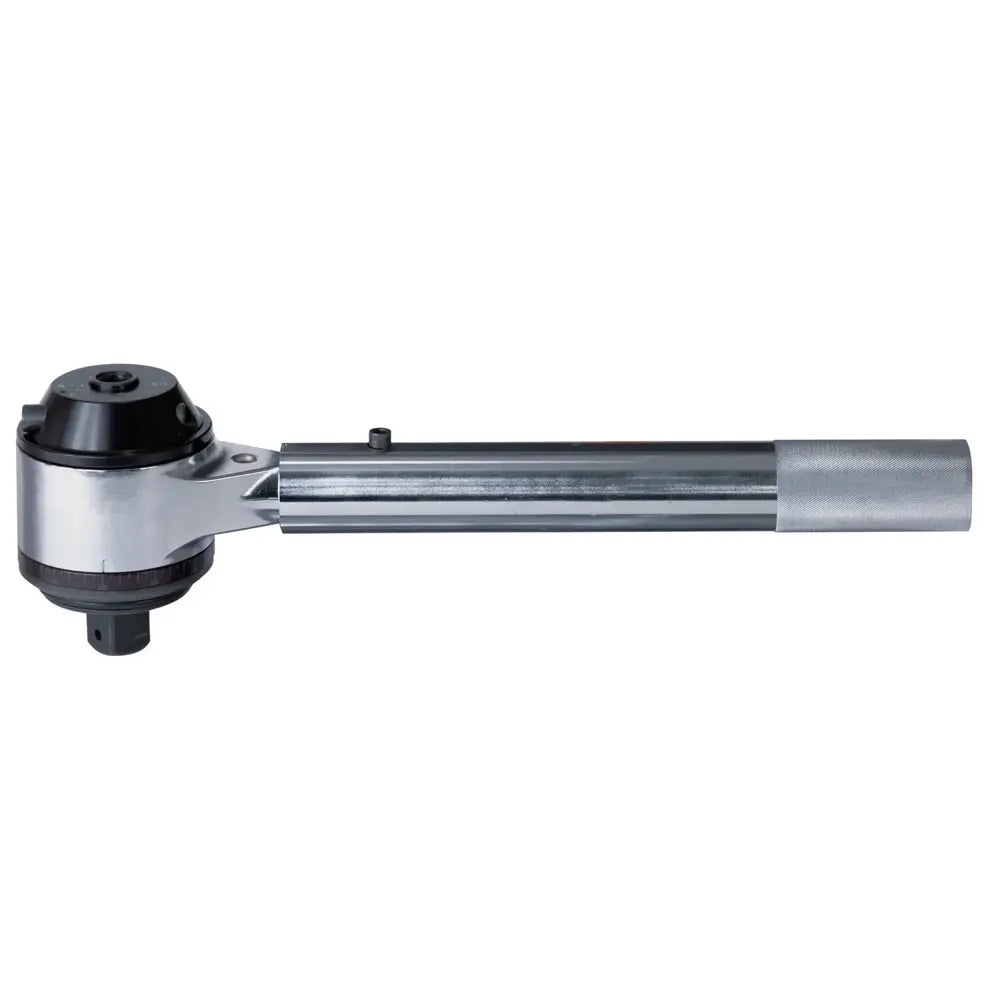

Apex 64-836G 3,200 foot pound torque multiplier

Product Description

The APEX 64-836G is a torque multiplier that offers innovations in torque measurement. It requires low input torque that can easily be applied by one person. Its internal planetary gear system provides strength and durability. Place an impact socket on the output square to attach to the fastener.

• Low input torque is required and can easily be applied by one person
• Internal planetary gear system provides strength and durability
• Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced

Product Highlights

This torque multiplier features a built-in angle of turn protractor that displays the output angle, providing effective use on fasteners requiring a specific angle rotation after applied torque.

Product Information

Standard Information

• Brand: APEX
• Manufacturer Part Number: 64-836G
• Country of Origin: USA

Technical Specifications

• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
• Torque Accuracy (20-100% of Full Range): +/-5% Clockwise
• Certified: No
• Head Thickness: 6.5
• Repair Kit: 64-852G
• Knurled: No
• Flexible: No
• Overall Length: 20.0
• Head Width: 4.031
• Packaging: Boxed
• Head Length: 6.375
• Input Drive: 1/2 in
• Finish: Electroless Nickle
• Overall Height: 6.5
• Output Drive: 1" Square Drive
• Included Storage: Blow Mold Case
• Overall Width: 4.1
• Drive Type: Square
• Material: Steel
• Category: Tools, Socket and Socket Handles, Sockets, Handles
• Manufacturer: Apex Tool Group
• Series: None
• Part Status: Active
• Tool Type: Handle, Torque Multiplier
• Tip Type: None
• Size: None
• Drive Size: 1/2 in
• Length: None
• Features: None
• Weight: None
• Reaction System: Tubular Reaction Bar
• Gear System: Single Stage Planetary
