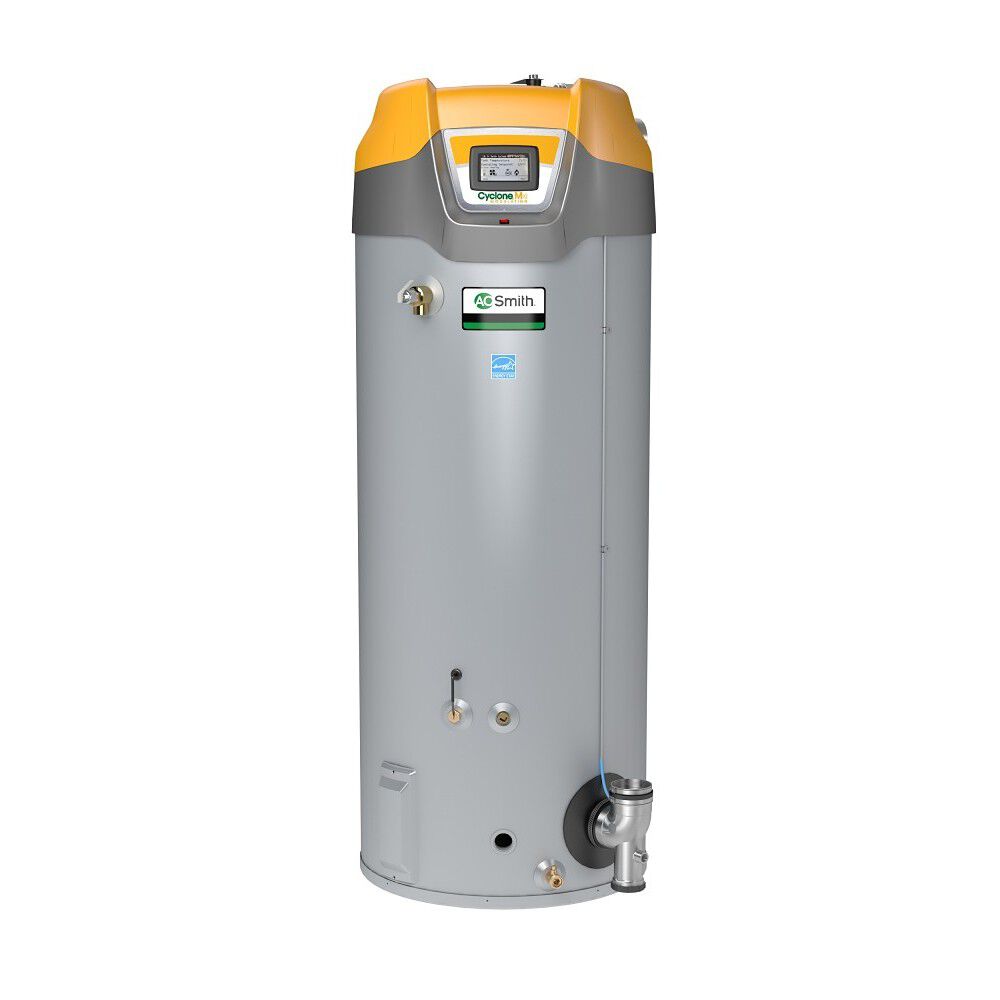

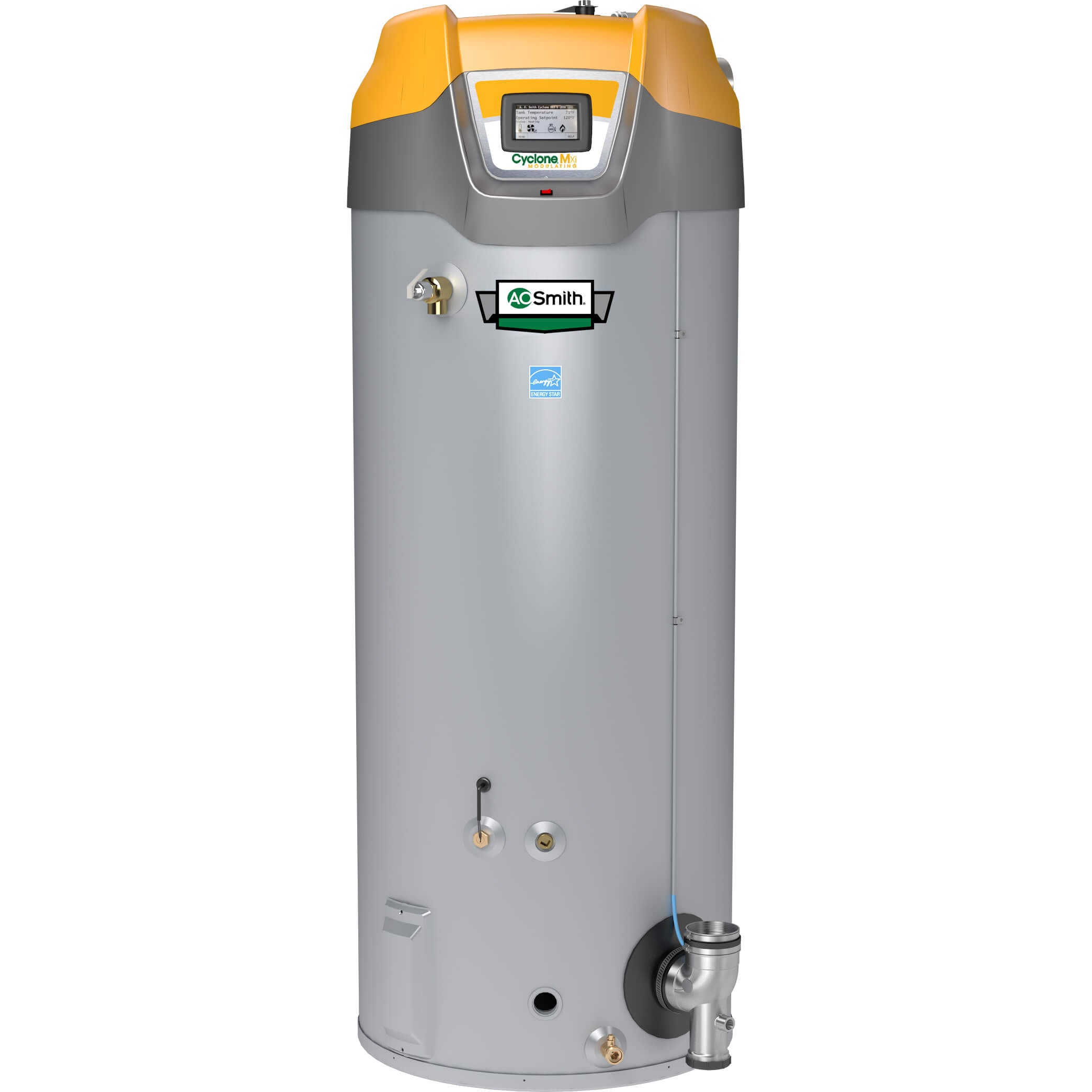

Ao Smith BTH-300A Cyclone Xi Tank Type Water Heater 300,000 BTU

Product Description

The AO SMITH BTH-300A Cyclone Xi tank type water heater is a commercial natural gas unit with a 300,000 BTU input and high efficiency. Features include an intelligent control system with LCD display, a submerged combustion chamber with helical heat exchanger coil, and powered anodes for long-lasting tank protection. The tank also features PERMAGLAS ultra coat glass lining.

• Intelligent control system with LCD display
• Submerged combustion chamber with helical heat exchanger coil
• Powered anodes provide long-lasting tank protection in varying water conditions

Product Highlights

High-efficiency commercial natural gas water heater with intelligent controls and durable tank protection.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: BTH-300A
• Country of Origin: US

Technical Specifications

• Product Type: WATER_HEATER
• Manufacturer: AO Smith
• Brand: AO Smith
• Model / MPN: BTH-300A
• ASME: Yes
• Hertz: 60
• Voltage: 120v
• BTU Input: 300000
• Fuel Type: Natural Gas
• Vent Size: 4"
• Vent Type: PVC, ABS, CPVC
• Efficiency: 96%
• Application: Plumbing
• Max Pressure: 10" W.C.
• Gas Connection: 1-1/4"
• Water Connection: 1-1/2"
• Diameter (Inches): 33-1/8"
• Capacity (Gallons): 119
• Max Pressure (PSI): 160
• Recovery 40°F Rise: 873 GPH
• Recovery 90°F Rise: 388 GPH
• Recovery 140°F Rise: 250 GPH
• Height (Inches): 75.5"
• Series: Cyclone
• Item Type: Water Heater
• Depth (Inches): 33-1/8"
• Water Heater Type: Commercial
• Type: Tall
• Venting Type: Power Vent
• Energy Star: Yes
• Nominal Gallon Capacity: 119 Gallons
• Rated Storage Volume: 118 Gallons
• Thermal Efficiency: 96%
• Maximum BTUs: 300,000
• Power Source: GAS
• T&P Relief Valve: Yes
• ASME Certified: Yes
• ASME Stamp: HLW
• Amperes: 5
• Digital Display: Yes
• ENERGY STAR® Certified: Yes
• Fuel Source: NATURAL
• Height to T&P: 52.00
• Installation Type: INDOOR
• Minimum BTUs: 195,000
• Recovery Rise at 90°F: 388
• Side Loop: No
• Height: 75.75"
• Diameter: 33.13 in.
