Product Description

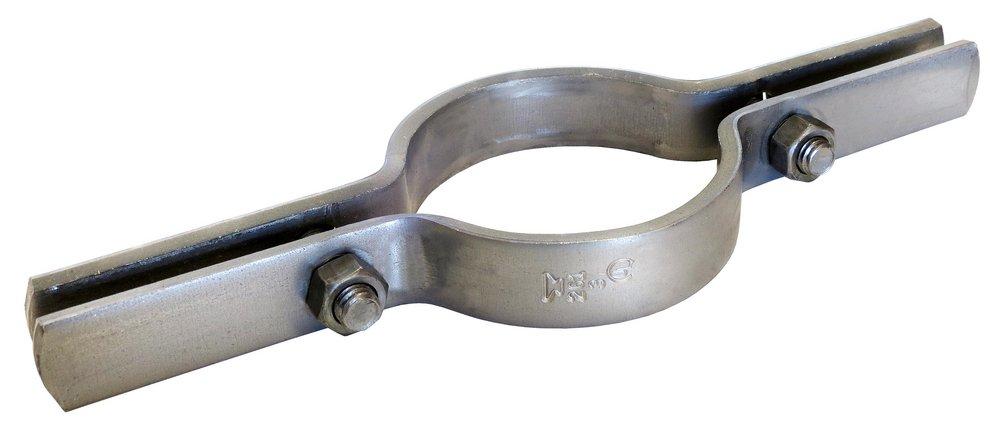

The AnvilStrut Fig 261 Riser Clamp, MPN 0500361043, is designed for effective support of stationary steel pipes, cast iron pipes, or conduit. This clamp is suitable for use with standard steel pipe outer diameters. It is important to consider sizing when using alternative piping types. This product complies with multiple important standards and offers reliability in various applications.
- Maximum temperature support: 650 degrees Fahrenheit for plain, 450 degrees Fahrenheit for galvanized and epoxy.
- Compliance with Federal Specification A-A-1192A and ANSI/MSS SP-69.
- UL and ULC listed for sizes ranging from one and a half to eight inches.
Product Highlights
This riser clamp is ideal for securing stationary pipes and ensures adherence to industry standards for safety and performance.
Product Information
Standard Information
-
Brand: AnvilStrut
-
Part Number: AG261H
Technical Specifications
-
Maximum Temperature: 650 degrees Fahrenheit plain, 450 degrees Fahrenheit galvanized and epoxy
-
Approvals: A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69, MSS SP-58 (Type 8)
-
UL Listed: Yes
-
ULC Listed: Yes
-
Sizes Available: 1-1/2 to 8 inches
-
Material: Carbon Steel
-
Finish: Black
-
Item Number: 3027593
