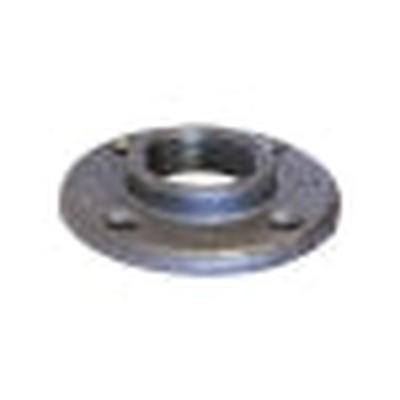

ANVIL E.NMFF Floor Flange 3/4 In Nominal Replacement MPN

Product Description

The ANVIL E.NMFF is a floor flange designed for reliable piping connections. It features a nominal size of three-fourths inches, and is built from malleable iron. This flange supports threaded connections and can withstand pressures up to three hundred psi. The galvanized finish provides protection against rust and corrosion.

• Suitable for both domestic and imported applications.
• Compatible with Schedule 40 or standard installation.
• Temperature rating from minus twenty to three hundred fifty degrees Fahrenheit.

Product Highlights

This flange offers a secure connection for various piping systems and is ideal for use in HVAC and plumbing.

Product Information

Standard Information

• Material: Malleable Iron
• Connection Type: Thread

Technical Specifications

• Nominal Size: 3/4 inches
• Bolt Circle Diameter: 2-1/2 inches
• Number of Bolt Holes: 4
• Bolt Hole Size: 1/4 inches
• Outside Diameter: 3-1/2 inches
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 350 degrees Fahrenheit
