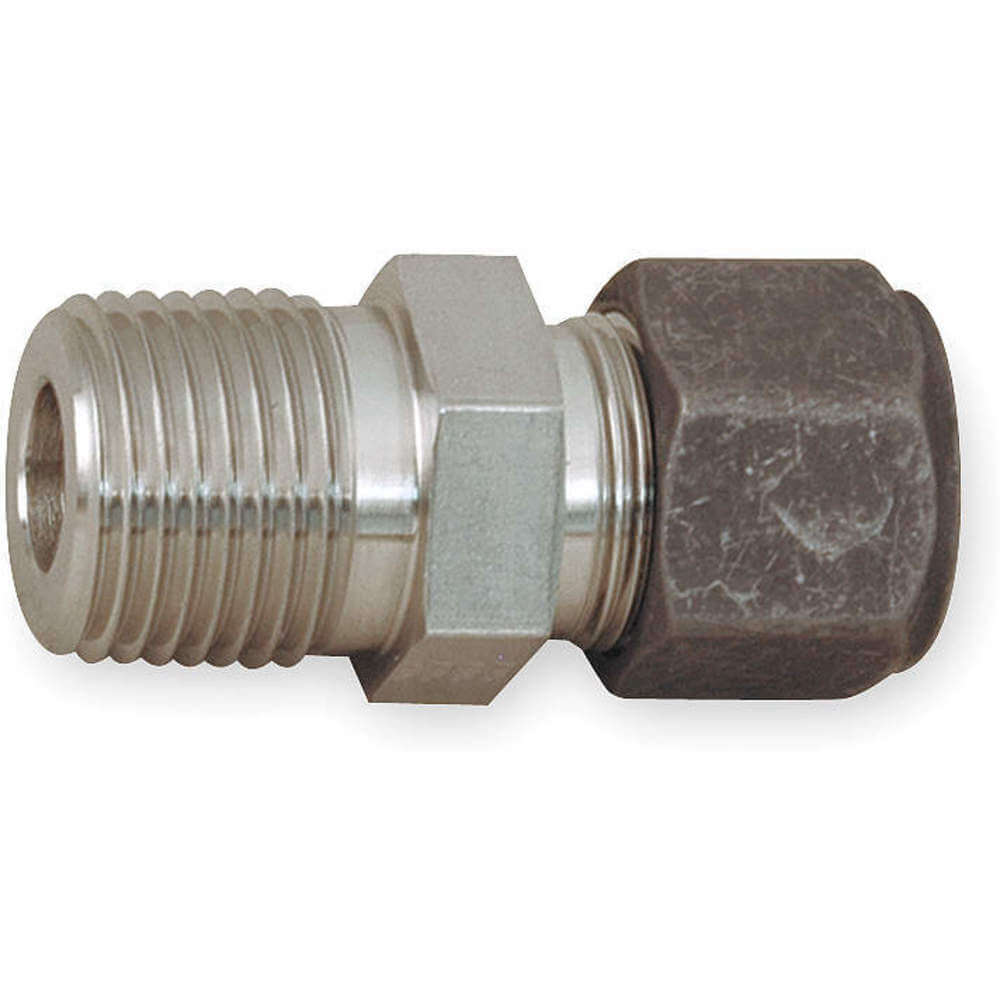

ANVIL 6-8FBZ-S Stainless Steel Compression Fitting

Product Description

The ANVIL 6-8FBZ-S is a stainless steel compression fitting suitable for connecting gases and liquids. Constructed from Grade 316 stainless steel, this fitting features CPI x MNPT connection type. It is designed for compatibility with stainless steel tubes measuring three eighths inches in outer diameter and connects to a half inch NPT pipe.

• Constructed from Grade 316 stainless steel
• Corrosion and vibration-resistant
• Temperature range from -425°F to +1200°F

Product Highlights

This compression fitting is vital for applications requiring high strength and durability.

Product Information

Standard Information

• Item: Compression Fitting
• Application: Gases, Liquids

Technical Specifications

• Body Material: Stainless Steel
• Compatible Tube Material: Stainless Steel
• Compression Thread Size: 9/16-20
• Connection Type: CPI x MNPT
• Maximum Operating Pressure: 10000 psi
• Temperature Range: -425°F to +1200°F
• Overall Length: 1 13/16 inches
• Standards: ASME SA-213, ASTM A213, ASTM A249, ASTM A269
