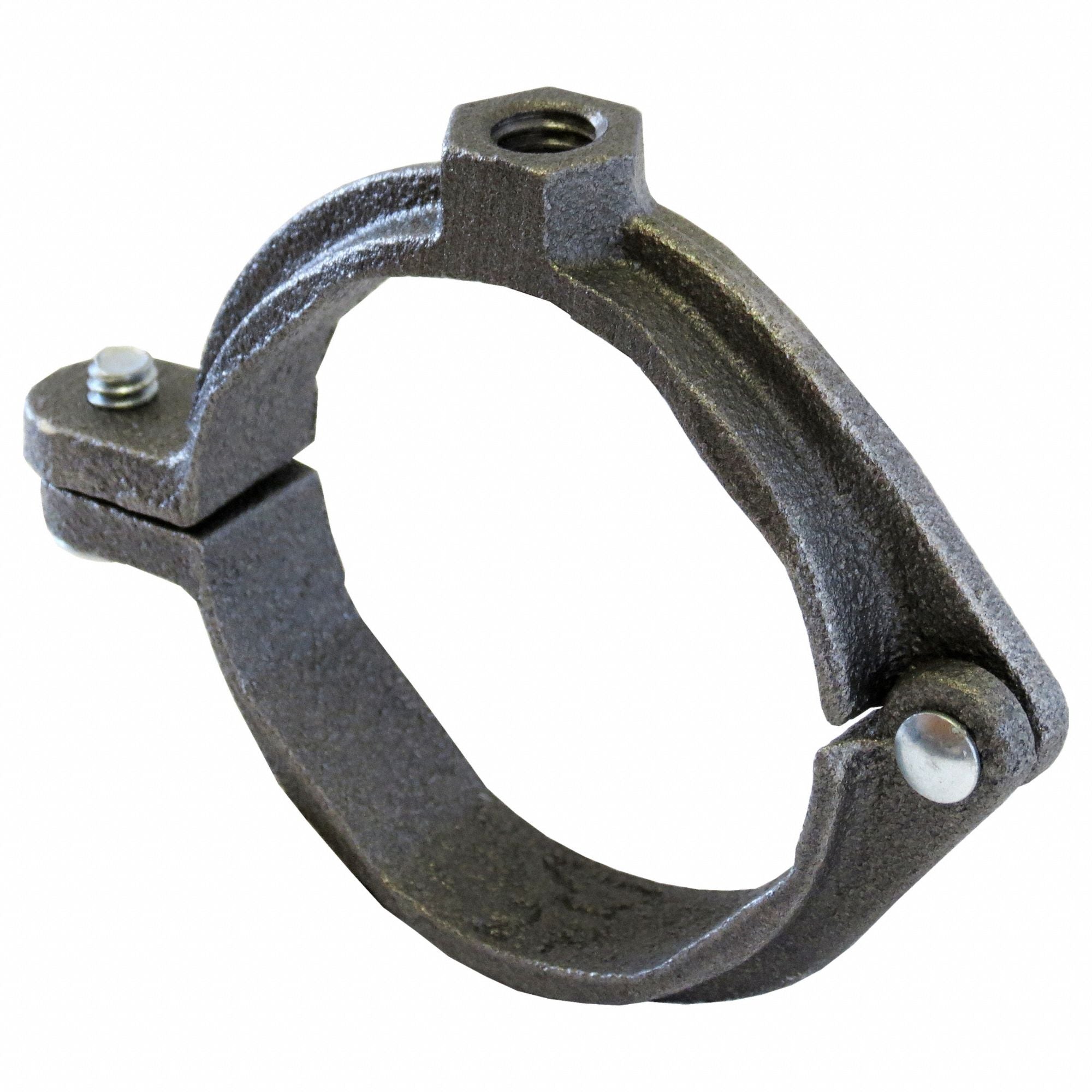

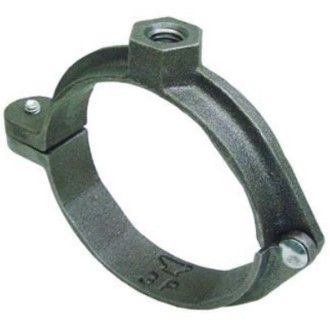

Anvil 560500241 Extension Split Pipe Clamp Zinc Plated

Product Description

The Anvil 560500241 is a two-piece extension split pipe clamp. It is designed for effective and efficient installation. This clamp is made from malleable iron and has a zinc-plated finish. It is suitable for non-insulated stationary pipe lines, ensuring secure and stable connections.

• Hinged design for rapid installation
• Compatible with refrigeration or compressor piping
• Designed for non-insulated lines

Product Highlights

This clamp is particularly useful when paired with a nipple, making it ideal for applications involving refrigeration or piping that may experience vibrations.

Product Information

Standard Information

• Brand: Anvil
• MPN: 560500241

Technical Specifications

• Rod Size: 3/8 inch
• Number of Screws/Bolts: 2
• Finish: Zinc Plated
• Applicable Standards: Federal Specification A-A-1192A Type 12, WW-H-171-E Type 25, ANSI/MSS SP-69 and MSS SP-58 Type 12
• For Pipe Size: 2 inches
• Load Capacity: 180 lbs
• Material: Malleable Iron
• Temperature Rating: 450°F
• Overall Height: 3.375 inches
