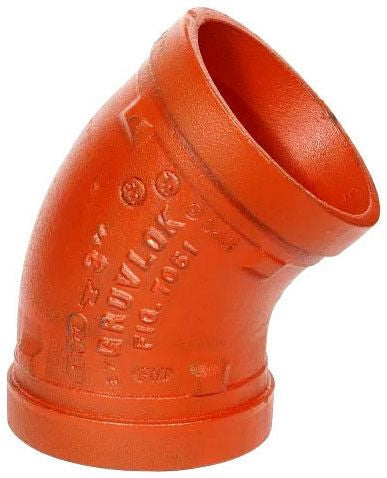

Anvil 390014900 Grooved 45 Degree Elbow 5 Inch

Product Description

The ANVIL 390014900 is a 5-inch grooved 45-degree elbow fitting manufactured from ductile iron and finished with an orange painted coat. Cast to ASTM A536 Grade 65-45-12 specifications, this straight-type elbow provides a reliable directional change in grooved piping systems. With a wall thickness of 0.258 inches and Schedule 40 construction, it is built for the pressure and mechanical demands of commercial and industrial piping. Licensed plumbers, pipefitters, and fire protection contractors install this fitting in conjunction with a compatible grooved coupling and pipe. Both inlet and outlet are grooved for fast, tool-assisted assembly without welding or threading.

This elbow is suited for a broad range of applications including plumbing, mechanical, HVAC, industrial process, and fire protection systems, as well as demanding environments such as mining and oil and gas. The 5-inch size and grooved-by-grooved end connection make it a practical choice for medium-to-large diameter piping runs where a 45-degree change of direction is required. Its lead-free construction supports use in potable water and regulated systems. The center-to-end distance is 3.25 inches, which is useful for tight layout planning in mechanical rooms and equipment connections.

Key Features

• 45-degree angle for directional changes in grooved piping systems
• Ductile iron construction per ASTM A536 Grade 65-45-12 for high strength and impact resistance
• Grooved x grooved end connection for tool-assisted, weld-free assembly
• Orange painted finish for corrosion resistance and system identification
• Lead-free material suitable for potable water and regulated applications
• Meets NSF/ANSI 61, UL (Canada and US), CUPC, FM, IAMPO, LPCB, and VdS certifications

Compatibility

Designed for use in grooved piping systems requiring a 5-inch, Schedule 40, 45-degree elbow across plumbing, mechanical, HVAC, industrial, fire protection, mining, and oil and gas applications. Compatible with standard grooved couplings and pipe conforming to 5-inch grooved end specifications.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or fire protection contractors following applicable mechanical and plumbing codes. Depressurize and drain the piping system completely before cutting in or replacing any grooved fitting. A manufacturer-approved grooved coupling and gasket rated for the system fluid and pressure must be used to complete each joint. Inspect groove dimensions and pipe ends for conformance before assembly to ensure a leak-free connection.

Technical Specifications

• Angle: 45 degrees
• Size A: 5 inches
• Size B: 5 inches
• Schedule: 40
• End Connection: Grooved x Grooved
• Center to End Distance: 3.25 inches
• Wall Thickness: 0.258 inches
• Material: Ductile Iron
• Material Specification: ASTM A536 Grade 65-45-12
• Process: Cast
• Finish: Orange Painted
• Type: Straight
• Lead-Free: Yes
• Applicable Standards: NSF/ANSI 61, UL (Canada and US), CUPC, FM, IAMPO, LPCB, VdS
• Application: Plumbing, Mechanical, HVAC, Industrial, Fire Protection, Mining, Oil and Gas

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 390014900
