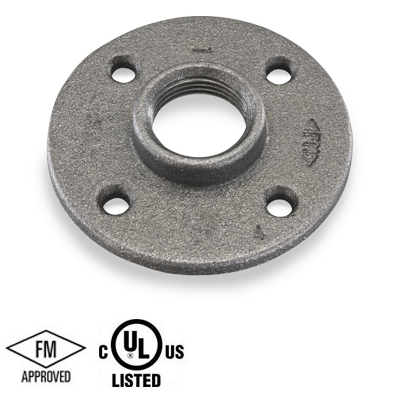

Anvil 33FF1024C NPT Threaded Floor Flange

Product Description

The Anvil 33FF1024C is a 2-1/2 inch NPT threaded floor flange designed for various applications. Made from black malleable iron, this Class 150 fitting is suitable for air, water, oil, natural gas, and steam. It meets ASME and ASTM standards, ensuring high quality and reliability.

• Constructed from durable black malleable iron.
• Features two and a half inch NPT threaded connections.
• UL Listed and FM Approved for up to 300 psi.

Product Highlights

This floor flange is engineered for strength and versatility in piping systems.

Product Information

Standard Information

• Product Type: Floor Flange
• Material Type: Black Malleable Iron

Technical Specifications

• End Connection: NPT
• Size: 2.50 inches (2-1/2)
• Pressure Rating: 150 psi
• Max Pressure: 300 psi @ 150°F
• Temperature Rating: -20°F to 350°F
• Applications: Air, water, oil, natural gas, steam
• Standards Met: ASTM A197, ASME B16.3, ASME B16.14, ASME B16.39, ASME B1.20.1
• Certifications: UL/FM
